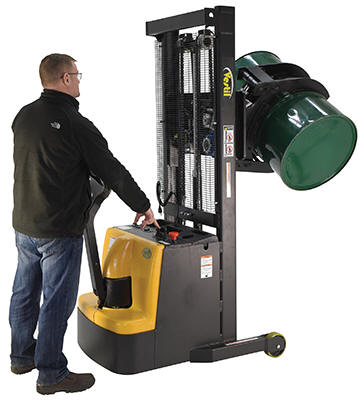

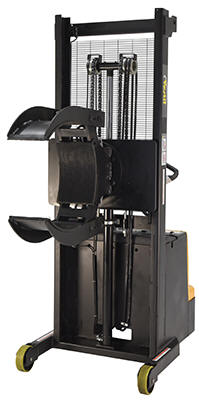

WB01372_.gif (406 bytes) Fully Powered Stacker with Drum Grip/Rotate



model S-MU-VDGR-64


Specifications:

Capacity: 800 lbs.
Vertical Drum Lift Height: 55"
Drive Motor: 24V /0.7KW
Lift Motor: 24V /1.3KW
Battery: 2 x 12V/85-95Ah
Battery Charger: 24V /12amp
Lift Speed w/o Load: 5.9"/sec.
Lift Speed w/ Load: 2.95"/sec.
Lower Down Speed w/o Load: 4"/sec.
Lower Down Speed w/ Load: 3.15"/sec.
Travel Speed w/o Load: 3.43 m/h
Travel Speed w/ Load: 2.8 m/h



Fully Powered Drum Stacker
Model PDF's Description Dispense
Height
Capacity
(lbs)
Wt.
(lbs)
S-MU-VDGR-64 Warranty PDF Lift 55-Gallon Steel Drums 64" 800

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Check out our regular Drum Positioner >>
