model HDC-905-IDC

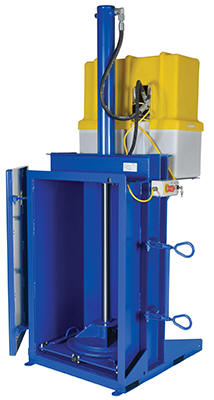

The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6 high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract).  This unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. 38,000 pounds of crushing force.  The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen.  Crushing feature will work with any drum size up to 55-gallons.  Compacting feature will only work with 55-gallon drums.  This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing.  Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting.  Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation.  The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H.  Replacement and additional drip pans are available, model HDC-905-DPN.  Crating is recommended for international shipments, contact factory.

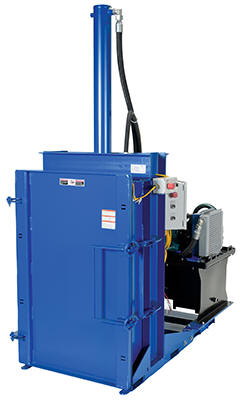

model HDC-905-HC



model HDC-900-GPT

Take the Drum Crusher to where the drums are! Save time and trips by transporting drums that are already crushed. Features an 18 HP 4 stroke Briggs & Stratton gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt and integral trailer with tail and brake lights is included. Exterior tension mounted twin cylinders eliminate rod buckling and damage.



Hydraulic Drum Crusher/Compactor
Model PDFs Description Wt. (lbs)
HDC-905-IDC/460V Warranty PDFPhoto GalleryCompliance Certificate Crusher/Compactor (460V, 3 Phase) 1570
HDC-905-HC/460V Warranty PDFCompliance Certificate Crusher/Compactor (460V, 3 Phase,w/ High Cycle Package) 2148

HDC-905-IDC/230V Warranty PDFPhoto GalleryCompliance Certificate Crusher/Compactor (230V, 3 Phase) 1570
HDC-905-HC/230V Warranty PDFPhoto GalleryCompliance Certificate Crusher/Compactor (230V, 3 Phase, w/ High Cycle Package) 2148
HDC-905-IDC/208V Warranty PDFPhoto GalleryCompliance Certificate Crusher/Compactor (208V, 3 Phase) 1570
HDC-905-HC/208V Warranty PDFPhoto GalleryCompliance Certificate Crusher/Compactor (208V, 3 Phase, w/ High Cycle Package) 2148
Drum Crusher/Compactor Options
HDC-905-DPN Warranty PDFPhoto GalleryCompliance Certificate Extra Aluminum Drip Pan 4
HDC9-1 Warranty PDFPhoto GalleryCompliance Certificate Single phase, 3 HP power unit (option for HDC-905-IDC) At 220V, cycle time increases to 70 sec. and requires 50A supply circuit
HDC-905-WD Warranty PDFPhoto GalleryCompliance Certificate Washdown Motor & NEMA 4 Enclosure
Mobile Gasoline Powered Drum Crusher
Model PDFs Description Wt. (lbs)
HDC-900-GPT Warranty PDFPhoto GalleryCompliance Certificate Gas Powered Drum Crusher 3400

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



HDC-905 Owners Manual


HDC-900-GPT Owners Manual


HDC-905-HC Survey Sheet


HDC-905-IDC Survey Sheet

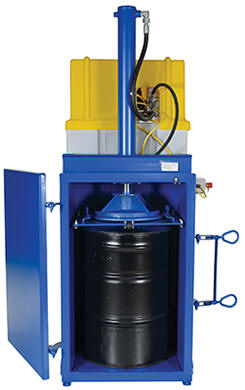

Crushes a drum to approximately 6" high

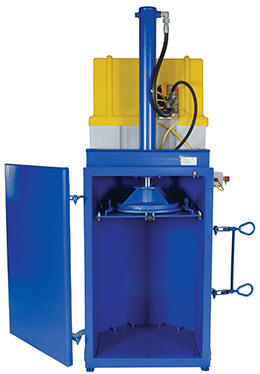

Safety door interlock system


Extra Aluminum Drip Pan
model HDC-905-DPN
