3 DRUM RACK
model DRK-1-3

Provides orderly storage for 30 & 55 gallon drums

The Drum Storage Racks provide orderly storage for 30 & 55 gallon drums. Constructed of heavy duty steel angle and cross bracing is provided for extra strength. The uprights keep drums from accidental roll off and allows forklift entry from the front or rear. Four (4) anchor pads help to prevent tipping. Color is yellow with blue cross braces. Shipped knock-down, assembly required.

Available in FIVE different configurations!


4 DRUM RACK
model DRK-2-2

6 DRUM RACK
model DRK-2-3

6 DRUM RACK
model DRK-3-2

9 DRUM RACK
model DRK-3-3

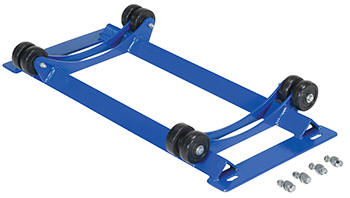

OPTIONAL REVOLVING DRUM CRADLE
model DRK-PRDC-42-R



Extra height uprights keep drums from
dangerous roll off


Optional Revolving Drum
Cradle & Drip Pan


Drum Storage Racks
Model PDF Description Overall Dimensions
(WxLxH)
Capacity
(lbs)
Wt.
(lbs)
DRK-1-3 Warranty PDFPhoto GalleryCompliance Certificate 3-Drum Rack 34-7/8"x34-13/16"x74-9/16" 2,400 205
DRK-2-2 Warranty PDFCompliance Certificate 4-Drum Rack 60-7/16"x34-13/16"x53-1/16" 3,200 208
DRK-3-2 Warranty PDFCompliance Certificate 6-Drum Rack 85-15/16"x34-13/16"x53-1/16" 4,800 274
DRK-2-3 Warranty PDFCompliance Certificate 6-Drum Rack 60-7/16"x34-13/16"x74-9/16" 4,800 268
DRK-3-3 Warranty PDFCompliance Certificate 9-Drum Rack 85-15/16"x34-13/16"x74-9/16" 7,200 359
DRK-SRS-2* Compliance Certificate 2-Drum Rack 61-1/2"x35-1/12"x31-1/4" 1,600 195
Options
DRK-PRDC-42-R Photo Gallery Revolving Drum Cradle 17-3/8" x 33-1/8" x 4-3/16" 800 28
DRK-PRDC-DPN   Drip Pan with steel holder 12" x 14-9/16" x 11-9/16" - 5

*Three is the recommended number that can be stacked  on top of each other

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
