model DCT-2000

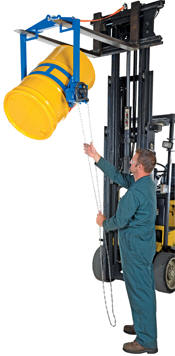

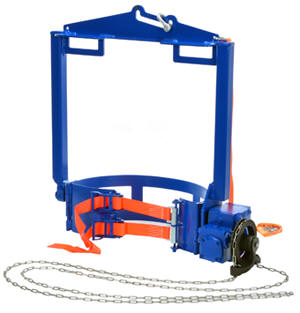

Rotate and position a fully loaded 55 gallon steel drum with ease.  Use with an overhead hoist or a fork truck.  Fork pockets measure 5-1/2"W x 1-15/16"H usable.  Features a chain crank that allows the operator to rotate 360 drums that are out of reach.  Drums are held in place with a drum locking system.  Meets OSHA 1910.179 requirements.  Model DCT-2000 features gear box operation.


model DCT-75


model DCT-85

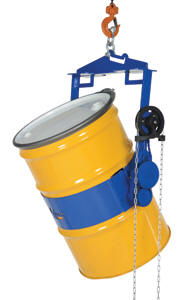

Hoist Mounted Drum Carrier/Rotator
Model PDF's Drum
Style
Capacity
(lbs)
Rotation
Method
Wt.
(lbs)
DCT-75 Warranty PDFPhoto GalleryCompliance Certificate 55 gallon steel 800 15' chain 145
DCT-85 Warranty PDFPhoto GalleryCompliance Certificate 55 gallon steel 1,500 15' chain 145
DCT-2000 Warranty PDFPhoto GalleryCompliance Certificate 55 gallon steel 2,000 15' chain 255
DCT-R-HC Hand Crank (In place of pull chain) 1

Drum must be full to rotate at rated capacity

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

[Fork Mounted Drum Carrier/Rotator] ~ [Manual Drum Carrier/Rotator]

Freight Quote



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



DCT-75 Owners Manual

DCT-85 Owners Manual

DCT-2000 Owners Manual


Click Here for Options to handle Plastic and Fiber Drums
