model HLD-116-10-P

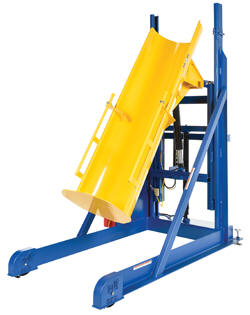

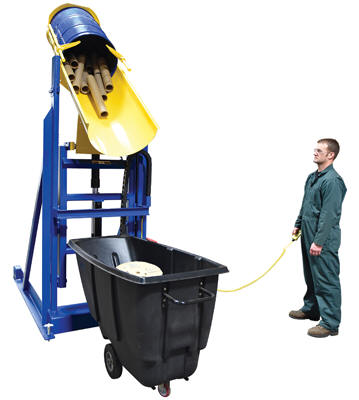

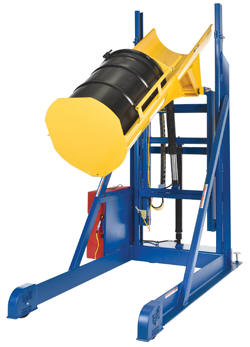

The Lift-and-Dump Hydraulic Drum Dumper is what you need to dump drums at variable heights.  The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights.  Features a (4) push button pendant which allows the operator full independent control of both lift height and the dump angle.  All typical 60Hz and DC voltages available.

Check out our standard Hydraulic Drum Dumpers.



Lift-and-Dump Hydraulic Drum Dumpers
Model PDF Dump Height (Min/Max) Rotation
Height
Level Height Capacity
(lbs)
Frame
(WxL)
Wt.(lbs)
Portable Lift-and-Dump Hydraulic Drum Dumpers (40 Dump Angle)
HLD-94-10-P Photo GalleryWarranty PDF 48"/94" 163" 87-3/4" 1,000 51"x75-7/8" 1372
HLD-116-10-P Warranty PDFPhoto Gallery 60"/116" 194" 99-3/4" 1,000 51"x82-7/8" 1460
HLD-94-15-P Warranty PDFPhoto Gallery 48"/94" 163" 87-3/4" 1,500 51"x75-7/8" 1392
HLD-116-15-P Warranty PDFPhoto Gallery 60"/116" 194" 99-3/4" 1,500 51"x82-7/8" 1525
Stationary Lift-and-Dump Hydraulic Drum Dumpers (40 Dump Angle)
HLD-94-10-S Warranty PDFPhoto Gallery 48"/94" 163" 85-7/8" 1,000 51"x65-1/2" 1341
HLD-116-10-S Warranty PDFPhoto Gallery 60"/116" 194" 97-7/8" 1,000 51"x72-1/2" 1422
HLD-94-15-S Warranty PDFPhoto Gallery 48"/94" 163" 85-7/8" 1,500 51"x65-1/2" 1454
HLD-116-15-S Warranty PDFPhoto Gallery 60"/116" 194" 97-7/8" 1,500 51"x72-1/2" 1466
DC Powered Portable Lift-and-Dump Hydraulic Drum Dumpers (40 Dump Angle)
HLD-94-10-P-DC Warranty PDF 48"/94" 163" 87-3/4" 1,000 51"x75-3/8" 1432
HLD-116-10-P-DC Warranty PDF 60"/116" 194" 99-3/4" 1,000 51"x82-3/8" 1526
HLD-94-15-P-DC Warranty PDF 48"/94" 163" 87-3/4" 1,500 51"x75-3/8" 1452
HLD-116-15-P-DC Warranty PDF 60"/116" 194" 99-3/4" 1,500 51"x82-3/8" 1585
Stationary Lift-and-Dump Hydraulic Drum Dumpers (45 Dump Angle)
HLD-94-10-S-DC Warranty PDF 48"/94" 163" 87-3/4" 1,000 51"x65-1/2" 1401
HLD-116-10-S-DC Warranty PDF 60"/116" 194" 97-7/8" 1,000 51"x72-1/2" 1582
HLD-94-15-S-DC Warranty PDF 48"/94" 163" 85-7/8" 1,500 51"x65-1/2" 1514
HLD-116-15-S-DC Warranty PDF 60"/116" 194" 97-7/8" 1,500 51"x72-1/2" 1526
