Steel
Retention Basin Carts

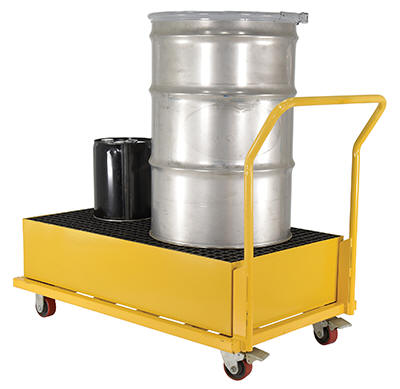

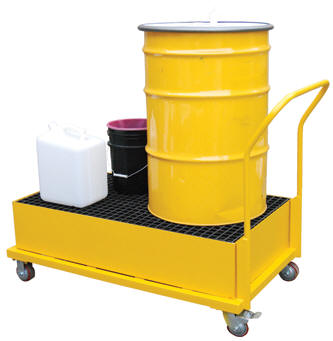

model SRBC-YL-2
Transfer
55-gallon steel drums from area to area and then safely dispense the
drums with this nonflammable Retention Basin Cart. This unit is
constructed of steel to resist extreme heat environments. Portability is
made easy with the (2) rigid and (2) swivel with lock polyurethane
casters. A push handle is located at one end for easy maneuverability. Removable grating is standard. Model SRBC-HR-YL features a stand which
measures 20"W x 32"L x 18"H.

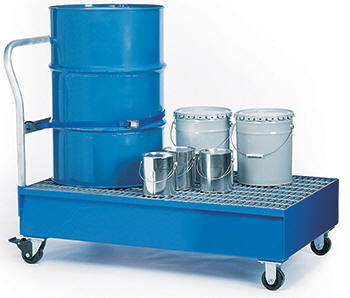

model SRBC-1
model SRBC-2
model SRBC-HR-2
|
Steel Retention Basin Carts |
| Model |
PDF |
Drum
Capacity |
Overall
Size
(WxLxH) |
Capacity
(lbs) |
Sump
Capacity |
Wt.
(lbs) |
| Vertical
Drum Storage |
| SRBC-1 |
   |
1 |
34"x34"x40" |
600 |
66 Gal. |
300 |
| SRBC-2 |
|
2 |
54"x34"x40" |
1,200 |
66 Gal. |
780 |
| SRBC-YL-2 |
|
2 |
31"x52-1/4"x42" |
1,200 |
43 Gal. |
274 |
| Horizontal
Drum Storage |
| SRBC-HR-2 |
|
2 |
54"x30"x40" |
1,200 |
66 Gal. |
880 |
| SRBC-HR-YL |
|
1 |
52"x30"x60" |
1,200 |
51 Gal. |
193 |
| Meets EPA 40 CPR - 264.175
& UFC 8003.1.3.4 |
= Approval Drawing
= Warranty
= Photo Gallery
= Testing Certificate
Horizontal
Steel Retention Basins
model HSRB-YL-1 |
model HSRB-YL-2 |
Dispense
or store 55-gallon steel drums with this non-flammable heavy-duty
Horizontal Steel Retention Basin. This unit is constructed of steel to
resist extreme heat environments. The rugged steel construction provides
durability and repairability. Portability is made easy with the
built in fork pockets. The built-in horizontal drum cradles are
sloped.

model HSRB-1 & model HSRB-2
model HSRB-4
Vertical
Steel Retention Basins

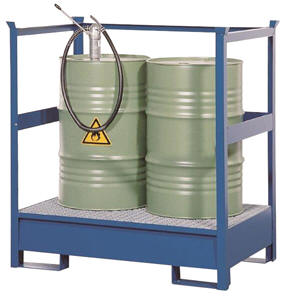

model VSRB-IN-4
Store 55-gallon steel drums in the vertical position
with these new non-flammable heavy-duty Drum Basins. The basin is
constructed of steel to resist extreme heat environments. The
rugged steel construction provides durability and repairability. Four
way fork entry. Basins are stackable when empty to provide more space in
a warehouse or storage area.

model VSRB-1 & model VSRB-2
model VSRB-4
= Approval Drawing
= Warranty
= Photo Gallery
= Testing Certificate
Stackable Transport
Pallets with Side Rails

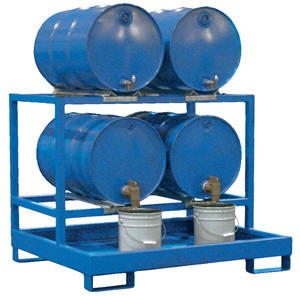

model STP-2
Most spills occur when transporting chemicals.
Safely and securely move your chemicals with our Transport Pallets.
Welded all steel construction with a durable finish. Galvanized
grating is easily removable for sump cleanup. 66-gallon sump
capacity. Each unit is individually tested after being welded and
before paint for leaks with a low viscous die penetrant test.
Four-way forklift access. Meets EPA and UFC requirements.
model STP-4
|
Stackable Transport Pallets with Side
Rails |
| Model |
PDF |
Drum
Capacity |
Overall
Size
(WxLxH) |
Capacity
(lbs) |
Color |
Wt.
(lbs.) |
| STP-2 |
|
2 |
55"x34"x55" |
1,200 |
Blue |
310 |
| STP-4 |
|
4 |
55"x50"x54" |
2,400 |
Blue |
385 |
| STP-BAR |
|
Security Bar |
54" |
-- |
|
4 |
Stackable Transport
Pallets with Side Rails

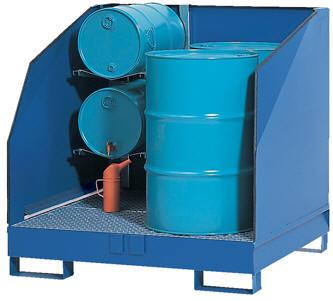

model VSRB-WS-4
shown with model VSRB-SAU
These retention basins with splash walls protect and
provide additional separation of your chemicals while transporting
drums. D urability of all steel construction insures years of use in
even the harshest industrial conditions. Arms snap into place on
uprights to provide optional self system available for storing
smaller drums or other containers. Arms measures 23"L x 18½"D. Enamel blue finish is standard; galvanized is available, contact
factory.
|
Vertical Steel Retention Basins with
Separation Walls |
| Model |
PDF |
Drum
Capacity |
Overall
Size
(DxLxH) |
Capacity
(lbs) |
Color |
Wt.
(lbs) |
| VSRB-WS-2 |
|
2 |
34"x54"x55" |
1,200 |
Blue |
320 |
| VSRB-WS-4 |
|
4 |
50"x55"x53" |
2,400 |
Blue |
410 |
| VSRB-SAU |
1 Pair Shelf
Upright Arms & Uprights |
5 |
| VSRB-SA |
1 Pair Shelf Arms |
5 |
= Approval Drawing
= Warranty
= Photo Gallery
= Testing Certificate
