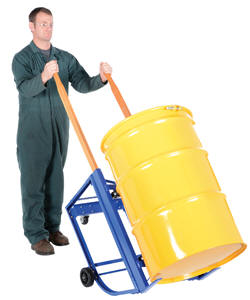

model RDC-100-10

Designed to rotate a 55 gallon steel drum from the vertical position to the horizontal position so their contents may be emptied. Equipped with rollers for mixing. Includes a built-in drip pan to provide a clean, safe work floor. Rolls on two (2) 3" swivel casters and two (2) 5" rigid casters. Simple one-person operation. Steel construction. Baked-in powder-coated toughness.



Revolving Drum Cart
Model PDF's Number
of Rollers
Overall Size
(WxLxH)
Capacity
(lbs)
Wt.
(lbs)
RDC-100 Warranty PDFCompliance Certificate 4 Dual Rollers 18-7/8"x 66-3/4"x 26-3/4" 600 46
RDC-100-10 Warranty PDFCompliance Certificate 4 Dual Rollers 18-7/8"x 66-3/4"x 26-3/4" 1,000 52

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

WB01372_.gif (406 bytes) Economy Rotating Drum Carts - RDC-60 series

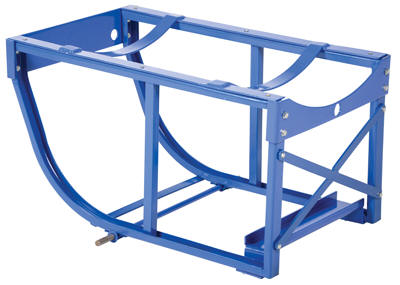

model RDC-60-NC

Specially designed to maneuver 55 gallon drums for emptying. Manually rotate and position drum to meet the needs of each individual user. Steel construction with a painted finish for added toughness. Model RDC-60-NC has all the functionality of the economy drum cart, however no casters are included.  Caster type utilized on additional models include; polyurethane, polyolefin, and steel. Handle not included as shown, sold separately.

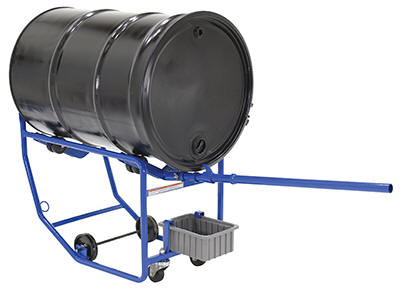

RDC-60-HDL is an extended handle with built in drum tipper to assist with liquid drainage.



model RDC-60-5-PU




model RDC-60-5-PO




model RDC-60-5-SS


Optional Handle

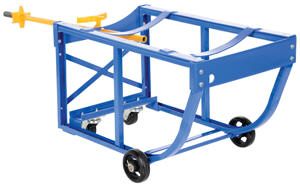

model RDC-60-HDL

Optional Drip Pan

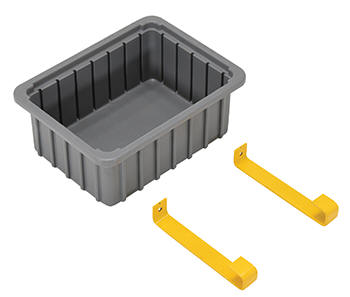

model RDC-60-DPN

Economy Rotating Drum Carts
Model PDFs Capacity
(lbs)
Wheel
Size
Wheel
Type
Weight
(lbs)
RDC-60-NC Warranty PDFCompliance Certificate 800 -- None 46
RDC-60-5-PU Warranty PDFCompliance Certificate 800 5" Polyurethane 53
RDC-60-5-PO Warranty PDFCompliance Certificate 800 5" Polyolefin 46
RDC-60-5-SS Warranty PDFCompliance Certificate 800 5" Steel 60
RDC-60-HDL Warranty PDFCompliance CertificateOptional Handle 6
RDC-60-DPN Warranty PDFCompliance CertificateOptional Drip Pan with brackets (9W x 12L x 7-5/32H) 3

WB01372_.gif (406 bytes) Deluxe Rotating Drum Carts - RDC-1000 series

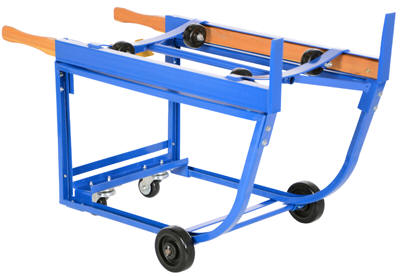

model RDC-1000-5PO

Practical design is easy to operate and features a capacity of 1,000 pounds.  Includes two (2) rigid and two (2) swivel casters. Two (2) retractable wooden handles included for easy operation.  Steel stops enable operator to hold drum during tipping operation and includes a built-in bung nut wrench as a bonus.  Rugged steel construction with painted finish. Assembly required.

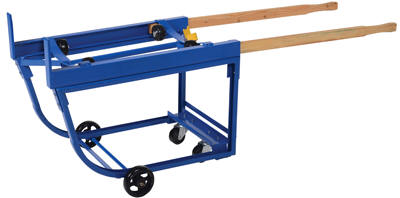

model RDC-1000-5PU



model RDC-1000-5SS


OPTIONAL DRIP PAN
model RDC-1000-DPN

Deluxe Rotating Drum Carts
Model PDFs Capacity
(lbs)
Wheel
Size
Wheel
Type
Weight
(lbs)
RDC-1000-5PU Warranty PDFCompliance Certificate 1,000 5" Poly on Steel 77
RDC-1000-5PO Warranty PDFCompliance Certificate 1,000 5" Polyolefin 73
RDC-1000-5SS Warranty PDFCompliance Certificate 1,000 5" Steel 70
RDC-1000-DPN Warranty PDFCompliance CertificateOptional Drip Pan with brackets  (8-1/4W x 11L x 4H) 2
