Stainless Steel Products

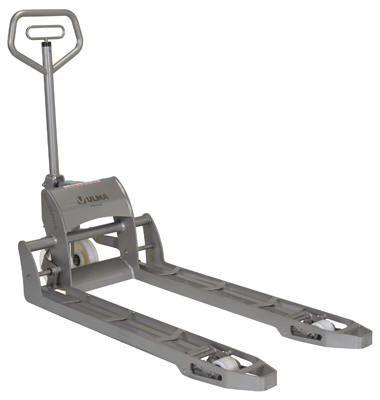

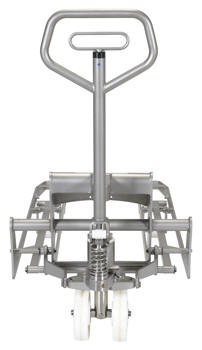

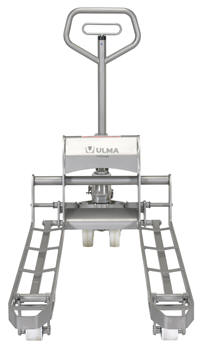

WB01372_.gif (406 bytes) Stainless Steel Hydraulic Hand Pump Pallet Jack



model ULM-PM-2745-30

The 304L Stainless Steel Hydraulic Hand Pump Pallet Jack is a superb addition to the food handling and other hygienic environments.  The 304L stainless steel construction including hydraulic cylinders as as the piston is not only strong, but also simple clean with its open fork design for thoroughly detailing the unit before/after transferring products.  The height of the ergonomically friendly handle diminishes slouching and can be rotated for simple maneuvering of products down narrow corridors and pathways.  All bearings are sealed for waterproof protection during both use and cleaning.  For best use, in the lowered position place the forks inside the fork pockets of the desired product, pump the handle up/down until the unit is raised off of the surface, and once elevated to the desired height simply maneuver the unit to the preferred location.

Stainless Steel Hydraulic Hand Pump Pallet Jack
Model PDF's Overall Fork Size
(WxLxH)
Capacity
(lbs)
Service
Range
Wt.
(lbs)
ULM-PM-2745-30 Compliance Certificate 26-3/4"x 45-1/4" 3300 3-3/8" to 8" 170
ULM-PM-2745-40   26-3/4" x 45-1/4" 4500 3-3/8" to 8" 170

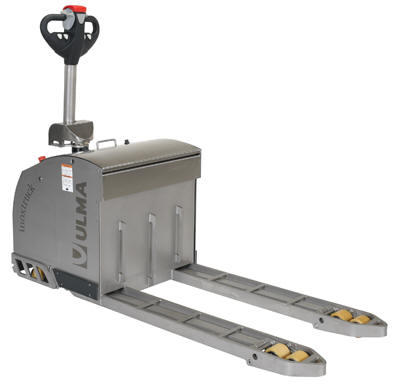

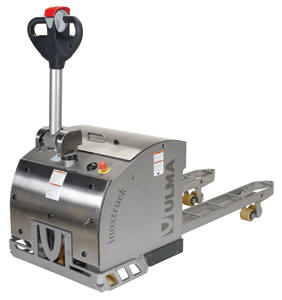

WB01372_.gif (406 bytes) Stainless Steel Electric Pallet Truck with Charger



model ULM-EPT-2745-44

The 304L Stainless Steel Electric Pallet Truck is an ideal supplement to food service and other sterile settings.  The 304L stainless steel construction including hydraulic cylinders as well as the piston provides not only a strong structure for transferring heavy loads between work areas, but is also easily washable.  An enclosed shelter for electronic components that is simple to access for general upkeep, while the humidity resistant electronics are great for working in difficult conditions.  The adjustable height handle with built in horn helps maintain an ergonomic posture of the user during use.  The emergency stop is perfectly located near the driving position of the unit for a rapid shut-down in the case of a crisis.  During use the unit maneuvers efficiently on its waterproof roll wheels. Unit comes standard in 304 Stainless Steel (316 Stainless Steel is an option, contact factory for pricing). Battery is 24V.

Stainless Steel Electric Pallet Truck
Model PDF's Overall Fork Size
(W x L)
Capacity
(lbs)
Service
Range
Wt.
(lbs)
ULM-EPT-2745-44 Compliance Certificate 27"x 44-1/2" 4400 3-3/8" to 7-5/8" 1130

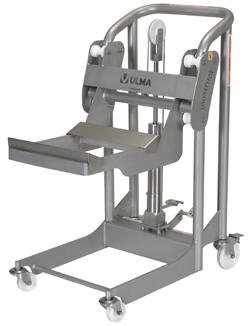

WB01372_.gif (406 bytes) Stainless Steel Hydraulic Foot Pump Roll Handler



model ULM-HRH-850

A 304LStainless Steel Hydraulic Foot Pump Roll Handler is great for an assortment of areas including the food handling service industries. The design is sleek, smooth, and easily washable for before and after use in hygienic areas. The raising and lowering of the platform to the precise position is made easy by the hydraulic foot pump design, which diminishes needless bending when loading/unloading material. The 304L stainless steel construction including hydraulic cylinders as well as the piston provides a strong structure for transferring heavy loads between work areas.  A rounded handle style allows for a proper two handed grip when maneuvering around work areas, while the perfect open cradle platform lets the user load material from three sides. The handler rolls smoothly on four swivel casters with two attached rear brakes for safe functionality when in a resting position.

Stainless Steel Hydraulic Foot Pump Roll Handler
Model PDF's Cradle Size
(W x L)
Max. Roll
Diameter
Capacity
(lbs)
Service
Range
Wt.
(lbs)
ULM-HRH-850 Compliance Certificate 16" x 16" 24" 850 5-3/8"to23" 138

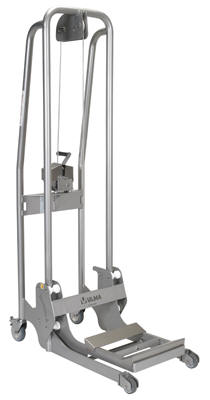

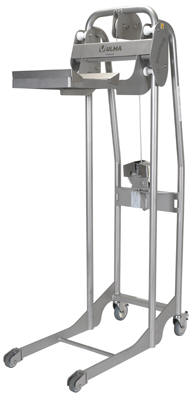

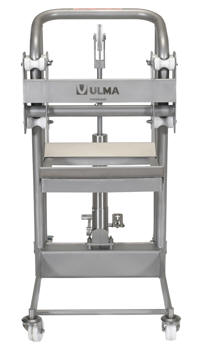

model ULM-WMS-550

The 304L Stainless Steel Manual Load Stacker is a great way to transport products in sanitary settings. The compact 304L stainless steel design not only helps transport heavy loads around the work area, but also fits in a compact area for space saving when not in use. The unit is raised manually for a more precise height positioning which diminishes bending and twisting when loading/unloading materials. Due to the cradle design, goods can be placed on the stacker from three sides without the need to change the placement of the stacker. Rolling casters are attached to provide a smooth transfer of products, while the braking system maintains safety once the unit is in place.





Stainless Steel Manual Load Stacker
Model PDF's Cradle Size (WxL) Maximum Roll Diameter Capacity
(lbs)
Service
Range
Wt.
(lbs)
ULM-WMS-550 Compliance Certificate 16" x 16" 24" 440 5-1/8"to62" 195

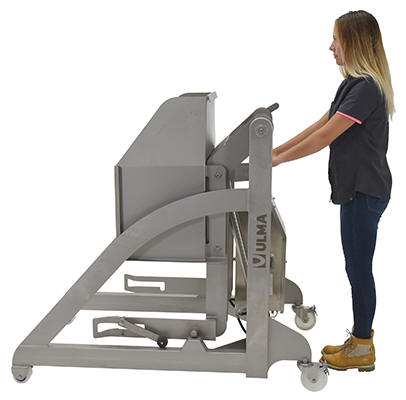

Frame & Bin Dumper
model ULM-PBT-BTC-10

The 304L Stainless Steel Drum & Bin Dumpers are great for the 'clean' workplace as well as manufacturing facilities. The structure is designed of 304L stainless steel including hydraulic cylinders as as the piston, which promotes easy cleaning and long lasting strength. Push button functionality allows the user to move to a precise position and stop the movement completely, in an emergency, with the emergency switch. Batteries are waterproof, making maintenance a breeze. The unit rolls easily on poly wheels, while traversing from area to area. Once folded, the unit becomes more compact for utilizing less storage space. Retrofit drum and bin chutes are available.

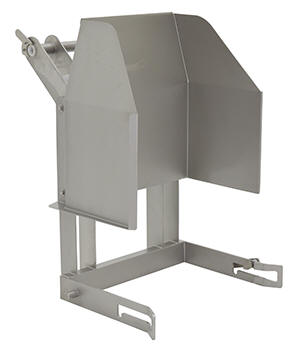

Retrofit Bin Chute Only
model ULM-PBT-RF-BTC-10

Stainless Steel Drum & Bin Dumper
Model PDF's Description Dump
Height
Rotation
Height
Level
Height
Capacity
(lbs)
Wt.
(lbs)
ULM-PBT-DTC-10   Frame & Drum Dumper 51" 106" 51-1/8" 660 504
ULM-PBT-BTC-10 Frame & Bin Dumper 51" 106" 51-1/8" 660 452
  Retrofit Options
ULM-PBT-RF-DTC-10   Drum Chute Only - - - 660 256
ULM-PBT-RF-BTC-10   Bin Chute Only - - - 660 204
