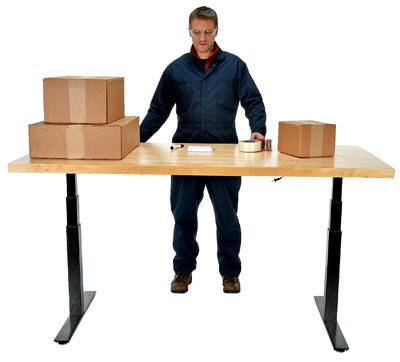

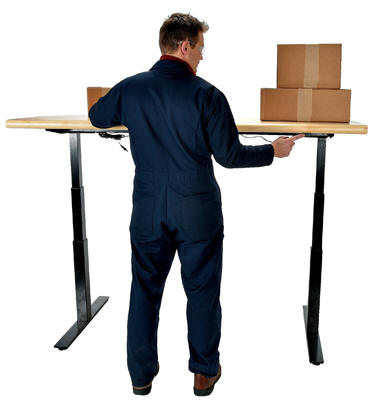

model EAH-3672-MT


Soft start and stop prevents jarring and provides smooth and even height adjustment. Increase productivity, while decreasing fatigue and trauma associated with uncomfortable work positions. Hand pendant control with raise and lower buttons on coil cord and hideaway slide in tray. Power supply is 115V, 1 phase standard. Extremely sturdy construction with programmable controller allows for three preset heights or for infinite control up and down range with push buttons. Uniform capacity is 500 pounds.

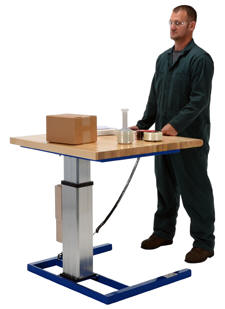

WB01372_.gif (406 bytes) Linear Actuated Adjustable Height Workstation


model LAW-3636


Increase productivity by allowing the body to reposition. The Linear Actuated Adjustable Height Table allows for anyone, regardless of their height, to easily use as a workstation or desk. Cantilever design optimizes foot, knee and leg room. The 36" wide x 36" deep platform is large enough for small parts assembly and will hold up to 500 pounds. A hand-held raise and lower control is attached to the understructure of the table; no more misplacing the remote. Durable hardwood platform standard. A 24V Battery pack included.

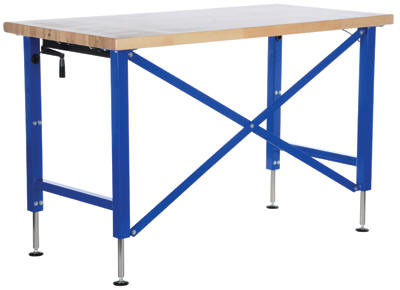

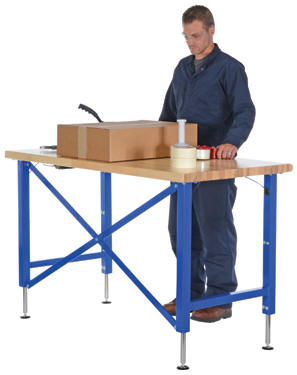

WB01372_.gif (406 bytes) Manual Adjustable Ergonomic Work Benches


model EWB-6030


Raise material to an ergonomic working height with the Manual Adjustable Ergonomic Work Benches. A fold away hand crank is located directly under the platform for easy raising and lowering. Hydraulic system will raise platform evenly. Rugged steel understructure.




Electric Adjustable Height Work Bench
Model PDF's Platform Size (WxL) Capacity (lbs) Service
Range
Description Wt.
(lbs)
EAH-3672-PT 36x72 500 30-1/2" to 48" Plastic 185
EAH-3696-PT 36x96 500 30-1/2" to 48" Plastic 215
EAH-3672-MT 36"x72" 500 30-1/2" to 48" Solid Maple 185
EAH-3696-MT 36x96 500 30-1/2" to 48" Solid Maple 263
EAH-3672-HT 36x72 500 30-1/2" to 48" Hardwood 221
EAH-3696-HT 36x96 500 30-1/2" to 48" Hardwood 263
EAH-3672-ESD 36x72 500 30-1/2" to 48" ESD 195
EAH-3696-ESD 36x96 500 30-1/2" to 48" ESD 227
Linear Actuated Adjustable Height Workstation
Model PDF's Platform Size (WxL) Capacity (lbs) Service
Range
Overall Frame
Size (WxD)
Wt.
(lbs)
LAW-3636 36"x36" 500 29-1/8" to 44-1/8" 34"x29-5/8" 307
Manual Adjustable Ergonomic Work Benches
Model PDF's Platform Size (WxL) Capacity (lbs) Service
Range
Operation Wt.
(lbs)
EWB-6030 60"x30" 750 32-1/8"to44" Hand Crank 210
EWB-7236 72"x36" 750 32-1/8"to44" Hand Crank 265
Click the for the PDF of the Approval Drawing for that model.  Click the for the PDF of the Parts List for that model.
