CA-40-4

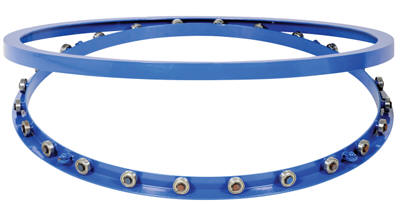

Carousel is shown with rings
separated to illustrate bearings

The Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle (3/16" thick). A series of sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Four guide rollers keep the rings aligned.



model CA-18-2


model CA-30-2


model CA-36-2


model CA-40-4



model CA-48-2


model CA-48-4


model CA-60-2


model CA-72-6
Carousels
Model PDF's Outer
Diameter
Height Capacity
(lbs)
 Wt.
(lbs)
CA-18-2 Compliance Certificate 18" 2" 2,000 21
CA-24-2 Compliance Certificate 24" 2" 2,000 28
CA-24-4 Compliance Certificate 24" 2" 4,000 30
CA-30-2 Compliance Certificate 30" 2" 2,000 34
CA-30-4 Compliance Certificate 30" 2" 4,000 36
CA-36-2 Compliance Certificate 36" 2" 2,000 41
CA-36-4 Compliance Certificate 36" 2" 4,000 45
CA-40-2 Compliance Certificate 40" 2" 2,000 47
CA-40-4 Compliance Certificate 40" 2" 4,000 49
CA-40-6 Compliance Certificate 40" 2" 6,000 51
CA-48-2 Compliance Certificate 48" 2" 2,000 71
CA-48-4 Compliance Certificate 48" 2" 4,000 86
CA-48-6 Compliance Certificate 48" 2" 6,000 97
CA-60-2 Compliance Certificate 60" 2" 2,000 110
CA-60-4 Compliance Certificate 60" 2" 4,000 116
CA-60-6 Compliance Certificate 60" 2" 6,000 128
CA-72-2 Compliance Certificate 72" 2" 2,000 163
CA-72-4 Compliance Certificate 72" 2" 4,000 163
CA-72-6 Compliance Certificate 72" 2" 6,000 169
Special Carousel Options
Model PDF Description Wt.
(lbs)
CA-HBK Manual Brake (field installed) 3
CA-HOD Hand operated locking detent (factory installed) 2
CA-FTK Foot operated locking detent (factory installed) 3




model CA-TP-24-R-SM


model CA-TP-30-R-SM


model CA-TP-30-R-TP


model CA-TP-40-R-TP


model CA-TP-48-R-SM


model CA-TP-48-R-TP


model CA-BASE-18-12
Steel Tread Plate Top Plates for Carousel (1/4" Thick)
Model Number
Diamond Plate
Model Number
Smooth Plate
Style Overall
Size
Carousel
Diameter
Wt.
(lbs)
CA-TP-18-R-TP CA-TP-18-R-SM Round 18" Dia. 18" 35
CA-TP-24-R-TP CA-TP-24-R- SM Round 24" Dia. 24" 52
CA-TP-30-R-TP CA-TP-30-R- SM Round 30" Dia. 30" 72
CA-TP-36-R-TP CA-TP-36-R- SM Round 36" Dia. 36" 136
CA-TP-40-R-TP CA-TP-40-R- SM Round 40" Dia. 40" 160
CA-TP-48-R-TP CA-TP-48-R- SM Round 48" Dia. 48" 210
CA-TP-60-R-TP CA-TP-60-R- SM Round 60" Dia. 60" 322
CA-TP-72-R-TP CA-TP-72-R- SM Round 72" Dia. 72" 445
CA-TP-18-S-TP CA-TP-18-S- SM Square 18"Wx18"L 18" 35
CA-TP-24-S-TP CA-TP-24-S- SM Square 24"Wx24"L 24" 52
CA-TP-30-S-TP CA-TP-30-S- SM Square 30"Wx30"L 30" 72
CA-TP-36-S-TP CA-TP-36-S- SM Square 36"Wx36"L 36" 136
CA-TP-40-S-TP CA-TP-40-S- SM Square 40"Wx40"L 40" 160
CA-TP-48-S-TP CA-TP-48-S- SM Square 48"Wx48"L 48" 210
CA-TP-60-S-TP CA-TP-60-S- SM Square 60"Wx60"L 60" 322
CA-TP-72-S-TP CA-TP-72-S- SM Square 72"Wx72"L 72" 445

Do not exceed the diameter of carousel when ordering top plates.

Top Plate & Top Ring are welded together. Contact factory for other fastening options.

Elevated Bases For Carousels - 12" High
Model PDFs Size
(WxL)
Capacity   Up To
(lbs)
Wt.
(lbs)
CA-BASE-18-12 Compliance Certificate 18"Wx18"L 2,000 195
CA-BASE-24-12 Compliance Certificate 24"Wx24"L 4,000 245
CA-BASE-30-12 Compliance Certificate 30"Wx30"L 4,000 295
CA-BASE-36-12 Compliance Certificate 36"Wx36"L 4,000 345
CA-BASE-40-12 Compliance Certificate 40"Wx40"L 6,000 395
CA-BASE-48-12 Compliance Certificate 48"Wx48"L 6,000 450
CA-BASE-60-12 Compliance Certificate 60"Wx60"L 6,000 530
CA-BASE-72-12 Compliance Certificate 72"Wx72"L 6,000 590
Elevated Bases For Carousels - 24" High
CA-BASE-18-24 Compliance Certificate 18"Wx18"L 2,000 330
CA-BASE-24-24 Compliance Certificate 24"Wx24"L 4,000 380
CA-BASE-30-24 Compliance Certificate 30"Wx30"L 4,000 430
CA-BASE-36-24 Compliance Certificate 36"Wx36"L 4,000 460
CA-BASE-40-24 Compliance Certificate 40"Wx40"L 6,000 510
CA-BASE-48-24 Compliance Certificate 48"Wx48"L 6,000 565
CA-BASE-60-24 Compliance Certificate 60"Wx60"L 6,000 645
CA-BASE-72-24 Compliance Certificate 72"Wx72"L 6,000 705

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



The Manual Carousels rotate materials with the assistance of an operator.  Now loading and
unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The
carousel may be added to an existing work bench, scissor table, or placed on the floor.  Constructed of two pieces of rolled structural angle (3/16" thick).  A series of sealed ball bearings transfer the load smoothly and evenly to the supporting surface.  Four guide rollers keep the rings aligned.

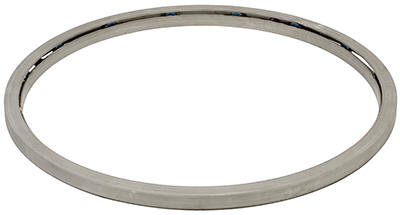

Stainless Steel Carousels
Model PDF's Outer
Diameter
Height Capacity
(lbs)
 Wt.
(lbs)
CA-40-2-SS 40" 2" 2,000 47
CA-40-4-SS 40" 2" 4,000 49
CA-40-6-SS 40" 2" 6,000 51

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




CA-5-12


CA-5-14


CA-5-24

Designed for efficient loading and unloading operations. With an aluminum construction, the carousel rings can be placed on an existing work bench, scissor table, or even place on the floor.  Additional features include; internally sealed roller bearings, guide rollers, and a powder coat finish.

Aluminum Mini Carousels
Model PDFs Diameter Height Capacity
(lbs)
Wt.
(lbs.)
CA-5-12 Compliance Certificate 12" 5/8" 500 3
CA-5-14 Compliance Certificate 14" 5/8" 500 3
CA-5-24 Compliance Certificate 24" 5/8" 750 8




model PTB-19


model PTB-24


model PTB-32


model PTB-46

Standard Features:

  • Low profile design is ideal for numerous applications

  • Rings have a superior plated finish for corrosion resistance

  • Grease-able points for simple maintenance

  • Bearings are shielded on both sides to protect from debris and retain grease

  • Multiple bolt locations for mounting

  • Captured ball bearing design prevents rings from separating

  • Geared rings and top plates with detents are also available

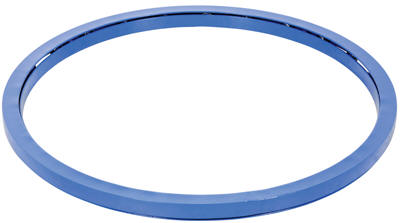

Heavy Duty Precision Turret Bearings
Model PDFs Diameter Height Capacity
(lbs)
Wt.
(lbs.)
PTB-19 Warranty PDFCompliance Certificate 19" 2-1/4" 6,000 98
PTB-24 Warranty PDFCompliance Certificate 24-1/4" 2-1/4" 6,000 117
PTB-32 Warranty PDFCompliance Certificate 32-1/8" 2-1/4" 6,000 149
PTB-40 Warranty PDFCompliance Certificate 40" 2-1/4" 6,000 188
PTB-46 Warranty PDFCompliance Certificate 46" 2-1/4" 6,000 215




model CA-KP-3636-6

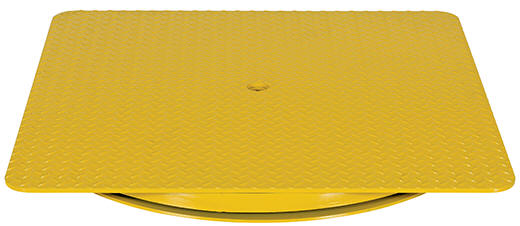

The Heavy Duty King Pin Carousel has all the ergonomic benefits of the standard carousel with a top plate and stabilizing center pin.  Unit will handle a wider variety of loads.  Features include 1/4" tread plate top on 4,000 lbs. and 3/8" tread plate top on 6,000 lbs. models.  Also includes a heavy-duty maintenance free bearing.  The king pin design allows off set loading up to 50% of the capacity on at least 50% of the deck.  Standard top plates are square with rounded corners.  Round top plates and other detents/brakes are available by contacting factory.



model CA-KP-4848-4


model CA-KP-4848-6


model CA-KP-6060-4


model CA-KP-6060-6

Heavy-Duty King Pin Carousel
Model PDFs Size
(WxL)
Height Capacity
(lbs)
Wt.
(lbs.)
CA-KP-3636-4 Compliance Certificate 36"x36" 2-11/16" 4,000 269
CA-KP-3636-6 Compliance Certificate 36"x36" 2-13/16" 6,000 306
CA-KP-4848-4 Compliance Certificate 48"x48" 2-11/16" 4,000 422
CA-KP-4848-6 Compliance Certificate 48"x48" 2-13/16" 6,000 506
CA-KP-6060-4 Compliance Certificate 60"x60" 2-11/16" 4,000 641
CA-KP-6060-6 Compliance Certificate 60"x60" 2-13/16" 6,000 749
Carousel Options
CA-HOD Hand operated Locking Detent (Factory Installed) 2




model LP-4000T-45

Low-Profile design is ideal for use with Pallet Trucks

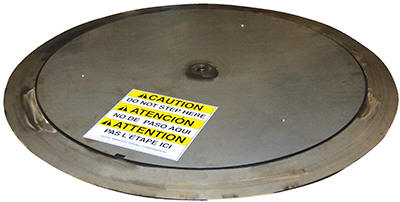

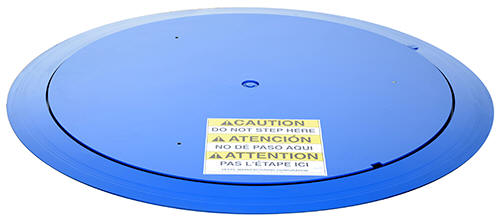

When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is
4-3/8"; slope is a mere 11. A safety detent lock restricts carousel rotation when not in use.  Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory.




Stainless Steel Model


Thin Spin
Model PDF's Description Starting Force Maintain Force Height Capacity (lbs) Wt. (lbs.)
LP-4000T Compliance Certificate 51" Usable Diameter               (59-11/16" Overall Diameter) 35 Lbs. 25 Lbs. 7/8" 4,000 300
LP-4000T-45 Compliance Certificate 45" Usable Diameter           (53-11/16" Overall Diameter) 35 Lbs. 25 Lbs. 7/8" 4,000 278
LP-4000T-39 Compliance Certificate 39" Usable Diameter           (47-11/16" Overall Diameter) 35 Lbs. 25 Lbs. 7/8" 4,000 232

 Stainless Steel

LP-4000T-SS Compliance Certificate 51" Usable Diameter           (59-11/16" Overall Diameter) 35 Lbs. 25 Lbs. 7/8" 4,000 300
LP-4000T-45-SS Compliance Certificate 45" Usable Diameter           (53-11/16" Overall Diameter) 35 Lbs. 25 Lbs. 7/8" 4,000 253
LP-4000T-39-SS Compliance Certificate 39" Usable Diameter           (47-11/16" Overall Diameter) 35 Lbs. 25 Lbs. 7/8" 4,000 206

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



Thin Spin series LP-4000T Owners Manual


CA-KP Survey Sheet

Detents


Hand Operated locking detent locks carousel every 90

model CA-HOD


Hand operated manual brake locks carousel in any position (cannot be used with square top plate)
model CA-HBK

Foot operated locking detent locks carousel every 90
(cannot be used with square top plate)
model CA-FTK
