model EHLTD-3-84

12V DC Standard, Options Here

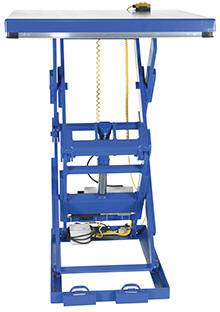

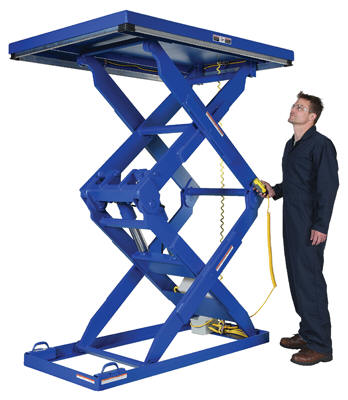

Achieve the extra reach you're looking for with our Double Scissor Lift Tables. These full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, safety velocity fuse to stop falling due to loss of hydraulic pressure, 24VAC push-button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. 2 HP, 460V, 3-phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.


model EHLTD-1-70

Scissor Lift Table Survey Sheet

Model Number Format
EHLTD-(
width)(length) - capacity - raised height

Double Scissor Lift Table
PDF's Vertical
Travel
Platform
Width
Platfor
Length
Capacity (lbs) Raised Height Lowered Height Travel Time (sec) Wt. (lbs)
Warranty PDF 60" 34"-48" 48"-72" 1,000 70" 10" 11 1157
Warranty PDF 60" 34"-48" 48"-72" 2,000 70" 10" 16 1156
Warranty PDF 60" 34"-48" 48"-72" 3,000 70" 10" 22 1182
Warranty PDF 60" 34"-48" 48"-72" 4,000 70" 10" 32 1318
Warranty PDF 60" 34"-48" 48"-72" 5,000 70" 10" 33 1300
Warranty PDF 72" 34"-48" 64"-88" 1,000 84" 12" 16 1576
Warranty PDF 72" 34"-48" 64"-88" 2,000 84" 12" 32 1801
Warranty PDF 72" 34"-48" 64"-88" 3,000 84" 12" 48 1785
Warranty PDF 72" 34"-48" 64"-88" 4,000 84" 12" 48 1777
Warranty PDF 72" 34"-48" 64"-88" 5,000 84" 12" 48 1870

* Travel Time Based on 3 Phase Power

Click the for the PDF of the Approval Drawing for that model.

Options For Electric Hydraulic Equipment
(Available at the time of sale for most of the
powered products listed in the Ergonomic
Solutions
section.)

Freight Quote



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



EHLTD series Owners Manual

Options


Built In Carousels

Accordion Skirting (click here)

Foot Control
Replaces the standard hand control if desired


Wireless Remote Controls
(
Click Here)


Integrated Scales (click here)

Options For Electric Hydraulic Equipment
(Available at the time of sale for most of the
powered products listed in the Ergonomic
Solutions
section.)
