model SCALE-S-CFT-55-5K

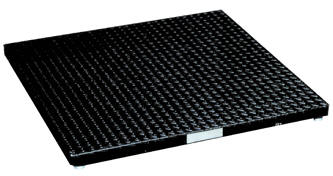

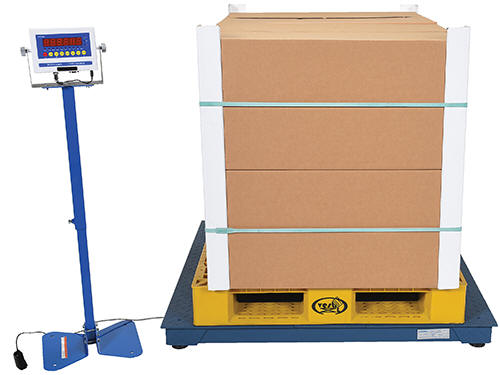

This scale has a low profile, allowing easy loading and unloading of heavy equipment. The rugged design has a tread plate top surface. Customer is responsible for contacting the local Weights and Measures Department or a state certified scale dealer before putting Legal for Trade (NTEP) scale into service for certification and is responsible for re-certification as required by local codes by certified personnel. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stand is adjustable up to 42" high and powered by (4) four C cell batteries (included) or 115V, 1 phase AC power, cord included. Optional Approach Ramp for pallet truck accessibility - order two for drive-on, drive-off convenience. Color may vary.


SCALE-S-CFT-PRINTER

SCALE-R-CS-44

Electronic Digital Floor Scale
Model PDFs Description Capacity
(lbs)
Overall
Width
Overall
Length
Overall
Height
Wt.
(lbs)

 Legal For Trade (NTEP)

SCALE-S-CFT-44-5K Warranty PDF Scale 5,000 48" 48" 3-1/2" 323
SCALE-S-CFT-44-10K Warranty PDF Scale 10,000 48" 48" 3-1/2" 373
SCALE-S-CFT-55-5K Warranty PDF Scale 5,000 60" 60" 3-1/2" 471
SCALE-S-CFT-55-10K Warranty PDF Scale 10,000 60" 60" 3-1/2" 492

 Scale Options

Model PDFs Description Capacity
(lbs)
Overall
Width
Overall
Length
Overall
Height
Wt.
(lbs)
SCALE-R-CS-44 Warranty PDF Ramp 10,000 48" 48" 3-1/2" 272
SCALE-R-CS-54 Warranty PDF Ramp 10,000 60" 48" 3-1/2" 272
SCALE-S-CFT-PRINTER Warranty PDF Digital Printer 3
SCALE-S-PAPER Warranty PDF Thermal Roll Printer Paper (10 Rolls) 5

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

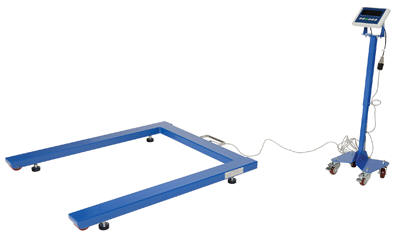

Constructed of heavy-duty steel to withstand the most demanding industrial environments, this scale is designed to handle pallets, and is easy to move and store. Ideal for moving around the work place where there is not enough room for a fixed scale. Scale is suitable for weighing in a warehouse, storehouse, or general use. The scale is light weight and can be easily moved by one person with its two (2) wheels and handle. The scale comes equipped with four (4) heavy duty load cells and a deluxe indicator head. The mobile digital display stand is adjustable up to 42 high and  powered by (4) four C cell batteries or  115V, 1 phase AC power, cord included.  Individual sides are 5" wide. Accuracy is +/-0.1% of the applied load.



"U" Shaped Platform Scale
Model PDF Capacity
(lbs)
Overall Size
(WxLxH)
Accuracy of Applied Load (lbs) Wt.
(lbs)
VPU-1 Warranty PDF 1,000 48"x56"x4-3/4" +/- 0.1% 176
VPU-2 Warranty PDF 2,000 48"x56"x4-3/4" +/- 0.1% 176
VPU-4 Warranty PDF 4,000 48"x56"x4-3/4" +/- 0.1% 176
VPU-6 Warranty PDF 6,000 48"x56"x4-3/4" +/- 0.1% 176

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate


Portable Floor Scales are ideal for easy transportation and weighing of goods at multiple locations. The scale has a non-slip diamond plate surface. Fold down low gradual ramps are fixed to the platform. Ramps make the scale ideal for wheeling pallet trucks, dollies, carts and containers on and off the platform.  Four alloy steel load cells and deluxe scale indictor head. Display powered by (4) four C cell batteries or 115V, 1 phase AC power, cord included. Indexing accuracy is 1.1 pounds.

Portable Floor Scales
Model PDFs Capacity
(lbs)
Platform
Size
(WxL)
Overall Size
with Slopes
(WxLxH)
Wt.
(lbs)
VPFS-3B Warranty PDF 3,000 47- 3/4" x  39-1/2" 60"x78-3/4"x2-3/8" 460
VPFS-3C Warranty PDF 3,000 59"x59" 71"x98-1/2"x2-3/8" 692

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



model SCALE-LP-44-5K

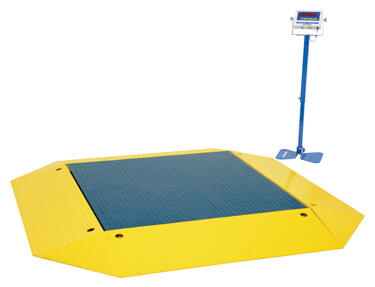

Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature " deck plate, grid core, and a ⅜" bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 or 20% slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.

Low Profile Scales & Ramps
Model PDFs Capacity
(lbs)
Platform
Size
(WxLxH)
Wt.
(lbs)
SCALE-LP-44-5K   5,000 48"x48"x 3" 185
SCALE-LP-44-10K   10,000 48"x48"x 3" 242
SCALE-LP-44-20K   20,000 48"x48"x 3" 430

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

*     Wash Down Floor Scales


model SCALE-LT-44-5K

Ideal for food, chemical, and pharmaceutical applications, these scales can withstand daily wash down. Non-metallic deck insert, type 304 stainless steel frame, feet, and bolts standard. Also comes with stainless steel NTEP load cells and junction box. Easiest "clean-in-place" scale on the market. Just lift out the 1" thick polyethylene deck insert, leaving the stainless steel scale frame in place, and hose down! Accuracy to NIST H44. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display is powered by 115V, 1 phase AC power, cord included.

Wash Down Floor Scales
Model PDFs Capacity
(lbs)
Platform
Size
(WxLxH)
Wt.
(lbs)
SCALE-LT-44-5K Warranty PDF 5,000 48"x48"x 4" 296
SCALE-LT-55-5K Warranty PDF 5,000 60"x60"x 4" 336
SCALE-LT-44-10K Warranty PDF 10,000 48"x48"x 4" 351
SCALE-LT-55-10K Warranty PDF 10,000 60"x60"x 4" 391

   = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



model SCALE-STS-44-5K

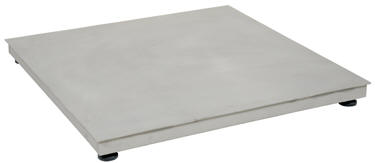

All purpose stainless steel floor scales are designed to withstand the widest variety of demanding industrial applications, including pharmaceutical, heavy wash down, food processing, chemical, and hazardous areas. Heavy duty Type 304 structural steel construction with stainless steel enclosure, hardware, and feet. Uses four hermetically sealed, stainless steel NTEP load cells. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stand  is powered by 115V, 1 phase AC power, cord included. Smooth top standard, diamond plate available

Stainless Steel Scales
Model PDFs Capacity
(lbs)
Platform
Size
(WxLxH)
Wt.
(lbs)
SCALE-STS-44-5K Warranty PDF 5,000 48"x48"x 3-1/2" 384
SCALE-STS-55-5K Warranty PDF 5,000 60"x60"x 3-1/2" 419
SCALE-STS-44-10K Warranty PDF 10,000 48"x48"x 3-1/2" 439
SCALE-STS-55-10K Warranty PDF 10,000 60"x60"x 3-1/2" 474



20,000 LB. CAPACITY SCALE SHOWN
WITH OPTIONAL APPROACH RAMPS.
CONTACT FACTORY FOR RAMP INFORMATION.

Heavy-duty, 10,000 pound capacity bases utilize a strong 2" channel perimeter and 7" @ 9.8# per foot channel understructure. Plate features up to 3/8" tread and the load cells are 5K-LE.

20,000 lb. capacity bases utilize 1/2" thick diamond plate with 10K-LE load cells.  SCALE-SC20-44-20K utilizes 7" @ 9.8# per foot channel under structure and the same perimeter, while the SCALE-SC20-55-20K uses 8" @ 20# per foot channel understructure and perimeter.  These are the ultimate, all around heavy bases! Contact factory for ramp options. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display is powered by 115V, 1 phase AC power, cord included.

Heavy Duty Domestic Floor Scales
Model PDFs Capacity
(lbs)
Platform
Size
(WxLxH)
Wt.
(lbs)
SCALE-DH10-44-10K Warranty PDF 10,000 48"x48"x 5" 450
SCALE-DH10-55-10K Warranty PDF 10,000 60"x60"x 5" 650
SCALE-SC20-44-20K Warranty PDF 20,000 48"x48"x 5-1/2" 654
SCALE-SC20-55-20K Warranty PDF 20,000 60"x60"x 5-1/2" 1183



Shown with Optional Ramp
Contact Factory

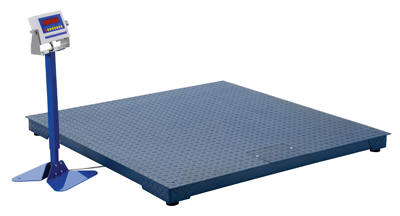

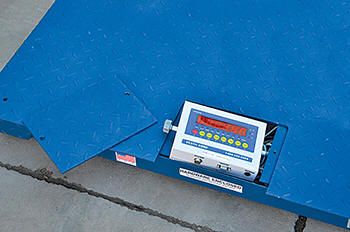

Low Profile Floor Scales are ideal for shipping and receiving areas. Industrial grade heavy duty mild steel platform scales ensure durability that will withstand years of daily use.  Features an anti-slip rugged steel diamond plate surface with heavy duty welded channel support.  Scale has a powder coat finish and can be pit mounted or free standing. It also has adjustable leveling feet standard   and operator controls for Zero, Tare, Unit, Net/Gross and Print. Unit converts to pounds or kilograms with a deluxe scale indicator. The mobile display stand is adjustable up to 42 high and powered by (4) four C cell batteries or 115V, 1 phase AC power, cord included.

Low Profile Floor Scales
Model PDFs Capacity
(lbs)
Platform
Size
(WxL)
Indexing
Accuracy
(lbs)
Wt.
(lbs)
VLPFS-2 Warranty PDF 2,000 36"x36"x 4" 0.5 200
VLPFS-4A Warranty PDF 4,000 48"x48"x 4" 1 280
VLPFS-4B Warranty PDF 4,000 60"x60"x 4" 1 446
VLPFS-20 Warranty PDF 20,000 96x120x6-3/4 1 2200
VLPFS-R-3636 Approach Ramp 36"L x36"W, 4.45 Angle 160
VLPFS-R-3648 Approach Ramp 36"L x48"W, 4.45 Angle 188
VLPFS-R-3660 Approach Ramp 36"L x60"W, 4.45 Angle 208
VLPFS-R-3696 Approach Ramp 36"L x96"W, 10 Angle 430


BDSC-26

CDSC-30

PTDSC-66

SSDSC

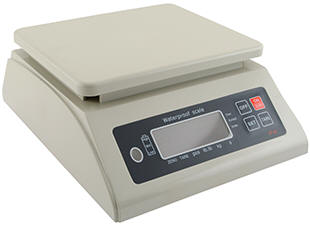

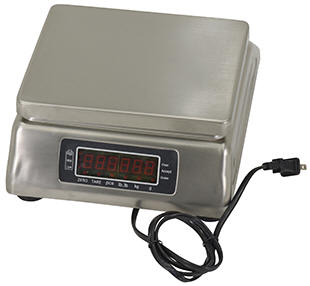

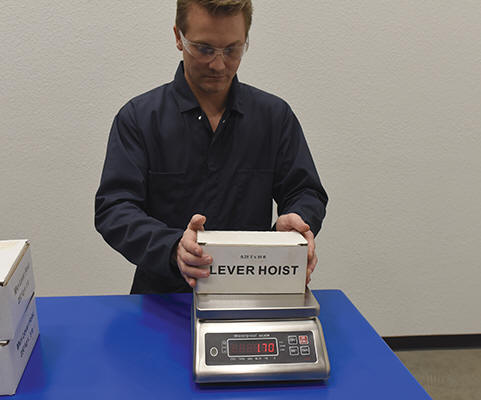

These scales capture a stable weight reading in less than one second. Features a rugged aluminum housing, stainless steel weighing pan, and a simple keyboard. Switches between pounds and kilograms.

Parts Scales
Model PDFs Description Platform
Size (WxL)
Capacity
(lbs)
Resolution
(lbs)
Wt.
(lbs)
SSDSC-6* Warranty PDF Stainless Steel 7.5"x9" 6.6 0.002 8
SSDSC-13* Warranty PDF Stainless Steel 7.5"x9" 13 0.005 8
SSDSC-66* Warranty PDF Stainless Steel 7.5"x9" 66 0.02 8
PTDSC-66* Warranty PDF Plastic 7.5"x9" 66 0.02 7

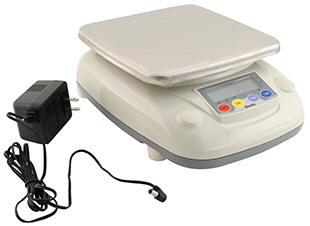

BDSC-26 Warranty PDF Weighing Scale 7.5"x7.875" 26 0.004 5

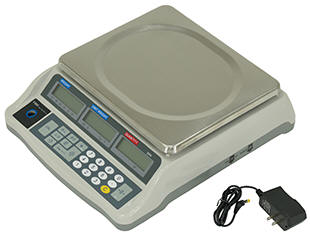

CDSC-30 Warranty PDF Counting Scale 10"x12" 30 0.001 11

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
