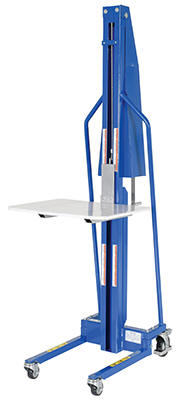

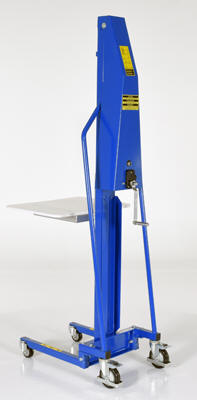

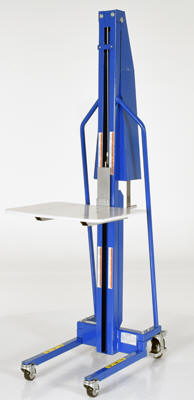

model MWP-440

These lightweight lifts are designed to take the strain out of any lifting job. Ideal for use in narrow aisles and confined spaces.  Platform height is adjustable with a manual hand winch.  An auto brake system allows for controlled lowering.  Quick change attachments available. Model MWP-330-DC-SS is constructed of 304 stainless steel. Includes two (2) 12V AGM batteries with an integral battery charger.

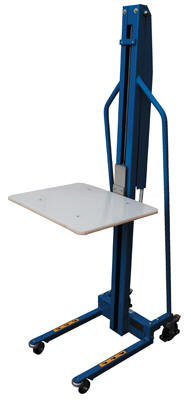

model MWP-220

Attachments:


V-Block
model MWP-VBLK

Reel Rotator
model MWP-RR

Double Spindle
model MWP-DSPIN

Spindle
model MWP-SPIN
Manual Work Positioners
Model PDFs Platform
Size (WxL)
Overall (W x L xH) Service
Range
Capacity
(lbs)
Wt.
(lbs)
MWP-220 Warranty PDFCompliance Certificate 23-3/4"x 18-" 23-3/4" X 33" X 72" 5" to 59" 220 129
MWP-440 Warranty PDFCompliance Certificate 23-3/4"x 18-" 23-3/4" X 32" X 75-1/4" 5" to 59" 440 186
MWP-440-SS Warranty PDF 18-1/2" x 24-1/2" 24-1/2" X 34" X 76" 5 to 60 440 130
MWP-330-DC-SS Warranty PDF 18-1/2" x 24-1/2" 24-1/2" X 34" X 71" 5 to 60 330 145
Attachments
MWP-VBLK Warranty PDF V Block, 16W x 16D x 3-1/4H 15
MWP-RR Warranty PDF Reel rotator 24
MWP-DSPIN Warranty PDF Double spindle, 2"D x 17"L (5" between spindles) 15
MWP-SPIN Warranty PDF Spindle, 1"D x 23"L 6

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

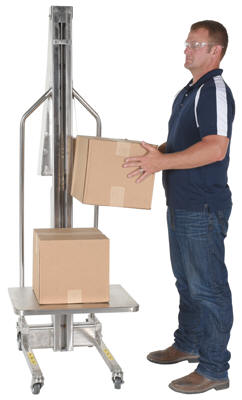

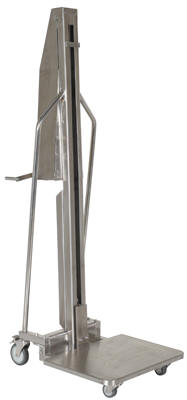

model MWP-440-SS

Standard Features:

  • Constructed of 304 stainless steel

  • Deck height is adjustable with a manual hand winch

  • Auto-brake system prevents uncontrolled lowering

  • (2) 3" front swivel and (2) 5" rear total locking swivel polyurethane casters



Stainless Steel Work Positoner
Model PDF Platform
Size (WxL)
Uniform
Capacity (lbs)
Service
Range
Overall Size
(WxLxH)
Wt.
(lbs)
MWP-440-SS Warranty PDFCompliance Certificate 18-1/2"x24-1/2" 440 5"to60" 24-1/2"x34"x76" 130

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

WB01372_.gif (406 bytes) Stainless Steel Electric Work Positioner

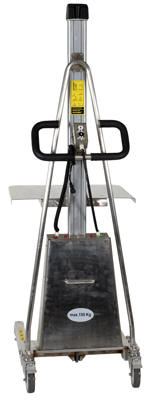

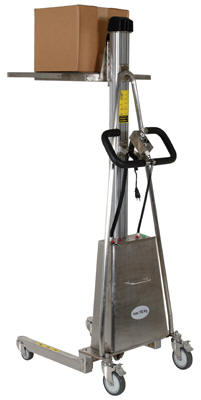

model MWP-330-DC-SS

Standard Features:

  • Robust, 304 grade, all stainless steel construction.
  • Automatic electric overload protection system for maximum safety.
  • Includes two (2) 12V AGM batteries with an integral battery charger.
  • Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters.
  • Maneuverability in narrow aisles and confined spaces.
  • Lightweight and compact.
  • Capacity is 330 pounds.



Stainless Steel Electric Work Positoner
Model PDF Platform
Size
(WxL)
Uniform
Capacity (lbs)
Service
Range
Overall Size
(WxLxH)
Caster
Size
(Front/Rear)
Wt.
(lbs)
MWP-330-DC-SS Warranty PDFCompliance Certificate 18-1/2"x24-1/2" 330 5"to60" 24-1/2"x34"x71" 3"/5" 145

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
