model PPI-150

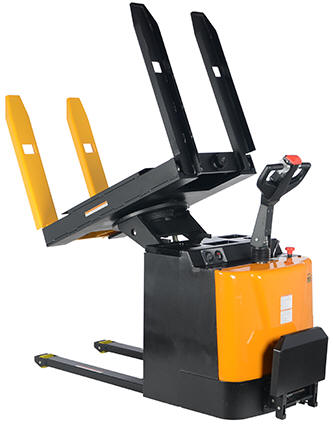

Tilt and rotate loads with our durable Pallet Inverter.  Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily.  DC power lift and drive makes operation safe and efficient.  The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn.  Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle.  Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn.  Ideal in loading dock areas as a power pallet truck, pallet tilter, or as a turntable.  Rolls smoothly on polyurethane steer and load wheels.

1) Close Load

2) Tilt Load 90

3) Manually Rotate 180

4) Lower Load

5) Transport Inverted Load

Portable Pallet Inverter
Model PDF Capacity
Fork Opening
(Min & Max)
Overall Size
PPI-150 Warranty PDFCompliance Certificate 3,000 32" to 54" 3-5/8" 6"x36" 35-3/4" x 99-1/2 x 56" 2290

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote


Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

PPI-150 Owners Manual

For Use with Skids or Open Bottom Pallets Only

Hand Throttle Controls

Check out our Stationary Pallet Inverter
