model POW-CAR-AR5

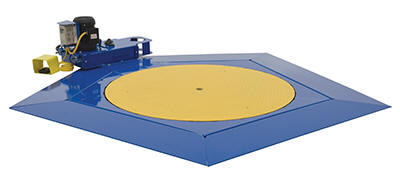

The Low Profile Carousel features a heavy-duty steel non-skid diamond plate platform. Model POW-CAR-AR5 features 300 built-in ramp allowing access for pallet trucks, approach ramp is not necessary. Model POW-CAR-50 is easily accessible with a fork truck; optional approach ramp available for use with pallet trucks. A foot control with a variable speed control (8 foot power cord), cushion start/stop, and rugged 3/4 HP motor with belt drive are standard. Units are pre-wired to work on 115V, 1 phase power.

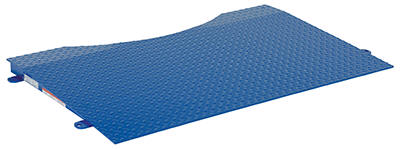

APPROACH RAMP
model
SWA-50-R-4848




model STPC-EHD

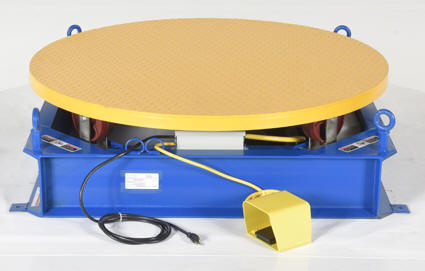

The Stand Alone Powered Carousel easily rotates pallets, skids, and other large objects with this rugged powered carousel. This Carousel includes a 48" diamond tread plate turntable that is supported with inverted casters for use as bearings. Also included; turntable, base, 115 V 1 phase power unit, and variable-speed control (electric/hydraulic unit has fixed speed control).  Turntable is operated with a foot control. Unit has a heavy-duty steel construction.

Check Out our Powered Turntable for Photography!

Powered Carousel
Model PDF's Carousel
Diameter
R.P.M. Carousel Height Capacity (lbs) Wt.
(lbs)
POW-CAR-AR5 Warranty PDF 51" 3-1/2 1" 4,000 507
POW-CAR-50 Warranty PDFCompliance Certificate 50" 3-12 2 1/16" 4,000 599
POW-CAR-50-R-4848 APPROACH RAMP FOR POW-CAR-50 (48"W x 3915/16"L x 2"H) 221
POW-CAR-M-RF MANUAL MAST OPTION (FIELD INSTALLED) 597
POW-CAR-PMO POWERED MAST OPTION (FACTORY INSTALLED) 621
POW-CAR-PMO-RF 115V POWERED MAST OPTION (FIELD INSTALLED) 194
Stand-Alone Powered Carousels (48" Dia.)
Model PDF's Carousel Diam Description Height RPM Capacity (lbs) Wt.
(lbs.)
STPC-CD Warranty PDFCompliance Certificate 48" 115V AC power (chain driven) 24" 3-12 4,000 1728
STPC-EHD Warranty PDFCompliance Certificate 48" 115V AC power (electric hydraulic driven) 13-1/2" 8 4,000 643

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
