model CART-1000-S-FR


model CART-1000-S-HR


model CART-1000-D-FR

Constructed of heavy duty steel and designed to withstand the most demanding industrial environments.  The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck, with the high quality foot-actuated, single-speed hydraulic pump.  The hydraulic system is equipped with an overload protection valve.  Each cart has safety stops to prevent an empty deck from lowering while performing maintenance.  A unique tilt-up table top allows for safe and easy maintenance.  Two rigid front casters and two rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.


model CART-400-D-HR

Try Our:  DC Powered or Lift & Tilt Carts

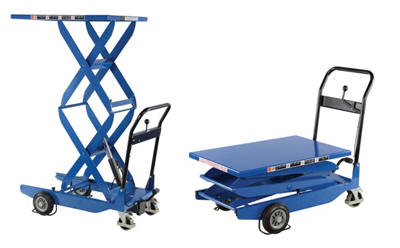

Premium Scissor Lift Carts
Model PDF Scissor
Design
Platform
Size (WxL)
Uniform
Capacity (lbs)
Service
Range
Lowering
Method
Wt.
(lbs)
 Foot Operated
CART-300-S-FR Warranty PDFCompliance Certificate Single 17-3/4"x30" 300 10" to 31" Foot 177
CART-600-S-FR Warranty PDFCompliance Certificate Single 19-3/4"x33-1/8" 600 13 1/4"to34" Foot 233
CART-1000-S-FR Warranty PDFCompliance Certificate Single 24"x40-1/2" 1,000 13 3/8"to35-1/2" Foot 312
CART-300-D-FR Warranty PDFCompliance Certificate Double 19-1/2"x33" 300 17"to56" Foot 264
CART-600-D-FR Warranty PDFCompliance Certificate Double 23-1/4"x33" 600 12"to53-1/2" Foot 301
CART-1000-D-FR Warranty PDFCompliance Certificate Double 24"x40-1/2" 1,000 11-3/4"to 61-1/2" Foot 384

 Hand Operated

CART-300-S-HR Warranty PDFCompliance Certificate Single 23-5/8"x35-7/16" 300 13-1/8" to 36-3/8" Hand 180
CART-1000-S-HR Warranty PDFCompliance Certificate Single 23-5/8"x35-7/16" 1,000 13-1/8" to 36-3/8" Hand 212
CART-400-D-HR Warranty PDFCompliance Certificate Double 23 5/8"x35 7/16" 400 18 1/8"to 65" Hand 284

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

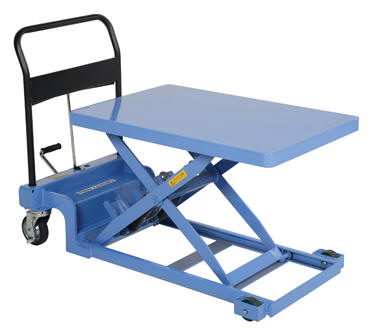

model CART-900-LP

Manual two speed foot pump, double up the lifting speed when pedal is turned to the left.  Equipped with speed control valve.  Prevents the tables from moving downwards at a fast speed.  Hydraulic pump pedal makes operation easier.  Equipped with a built-in automatic load check valve.  Simple design, powerful parking brake, and compact with small turning radius.



Low Profile Scissor Lift Carts
Model PDF Platform
Size (WxL)
Uniform
Capacity (lbs)
Service
Range
# of Pumps
at High/Low
Speed
Wt.
(lbs)
CART-900-LP Warranty PDFCompliance Certificate 23-3/4"x35-5/8" 900 3-1/2" to 24" 33/53 225

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
