model STRAP-PS-HD

Universal strapping carts are designed for use with Poly and Steel strapping.

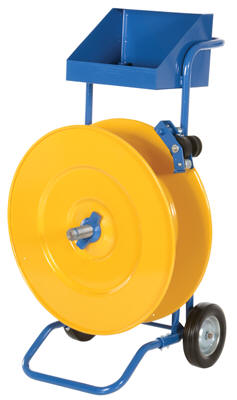

STRAP-PS-HD features unique multi-tier discs for use with strapping core sizes of 16" x 3", 16" x 6" and 8" x 8".  Cart includes storage tray and two (2) 8" x 2" hard rubber wheels for easy portability.  Powder coat finish.  Poly and steel strapping available separately here.

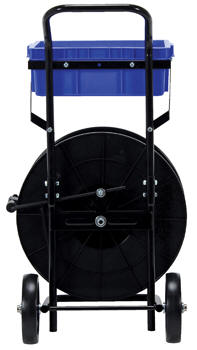

STRAP-PS-P is a lightweight strapping cart with plastic disc and integral tool tray.  Designed for use with poly strapping that has a core size of 8" x 8" see here.  Great for everyday use around the warehouse, including box sealing and bundle applications.  Two (2) 8" x 2" plastic wheels for easy maneuvering.


model STRAP-PS-P

Strapping Cart
Model PDF Strapping
It Accepts
Overall Size
(WxDxH)
Wt.
(lbs)
STRAP-PS-HD Warranty PDFCompliance Certificate Steel & Poly 24-7/8"x 20-1/2"x 43" 58
STRAP-PS-P Warranty PDFCompliance Certificate Poly 16-3/8"x17-1/2"x37-1/2" 20



model STRAP-VH

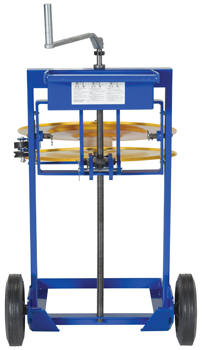

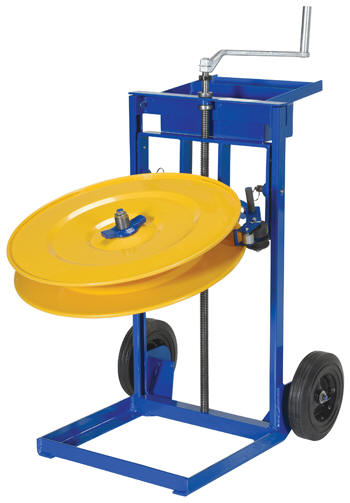

Unique cart allows the operator to apply strapping both vertically and horizontally around the load.  For use with both steel and poly strapping. To use, engage outer detents (disengaging inner) and turn the removable handle until strap is in the horizontal position. Once in the horizontal position, disengage the outer detents and engage the inner detents. The strap can now be raised and lowered from 28" down to 8" with the same handle. Each unit comes standard with 10" x 2-1/2" semi-pneumatic wheels. The equipment tray measures 14"W x 6"L x 4-1/2"D. Works with strapping core sizes of 16" x3", 16" x 6" and 8" x 8", available here.



Vertical/Horizontal Strapping Cart
Model PDF's Overall Size (WxDxH) Feed Strap Height Standard Material Accepted Strapping Wt.
(lbs)
STRAP-VH Warranty PDFCompliance Certificate 26-9/16"x 30-11/16"x 47-1/2" 8"to28" 24" Max. Dia. Steel & Poly 176



model STRAP-P2

Increase Productivity Economical, Fast, Easy Low Maintenance

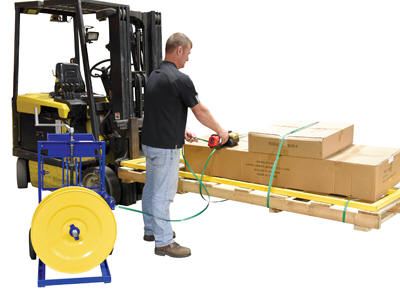

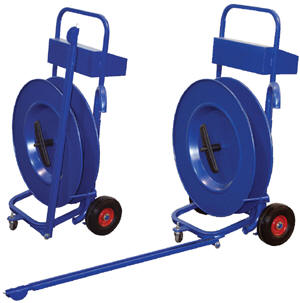

The Manual Pallet Probe Strapping Cart is a quick answer to a long time dilemma - getting poly strapping through your pallet.  To use, transport cart to your loaded pallet, extend arm, and run strapping to end clip.  After strapping is secure, roll cart probe into pallet along center stringer.  The strapping arm will then protrude out the other end allowing the operator to pull the strapping up and over the pallet.  Unit accepts polypropylene strapping.  Tray size is 19"W x 5-3/4"D.  The maximum core width is 5", while the minimum core width is 2-1/2".  Overall material diameter is 16" with a minimum of 13-3/4".  Works with poly strapping core sizes of 16" x 3", 16" x 6" and 8" x 8", available here.

Manual Pallet Probe Strapping Cart
Model PDF Arm Length Retracted/Extended Standard Material Accepted Strapping Wt.
(lbs)
STRAP-P2 Warranty PDFCompliance Certificate 40" to 64" 24" Max. Diameter Polypropylene 132



model STRAP-FP

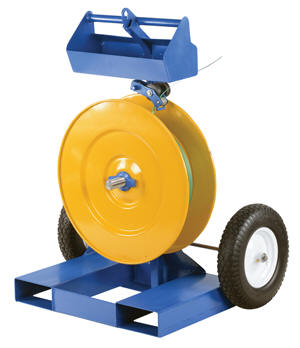

Heavy-duty "industrial grade" strapping and banding cart includes fork pockets for use with lift trucks and standard 27" wide pallet trucks. Includes lifting eye for use with overhead crane. Also comes standard with a steel tool storage tray (18"W x 7"D x 3-1/2"H usable) and 16" diameter foam wheels.  Works with strapping core sizes of 16" x 3", 16" x 6" and 8" x 8", available here.

Industrial Duty Strapping Cart
Model PDF Description Overall Size
(WxDxH)
Wt. (lbs)
STRAP-FP Warranty PDFCompliance Certificate Industrial grade strapping & banding cart 38"W x 26-7/16" x 47-1/2" 95



model STRAP-WALL

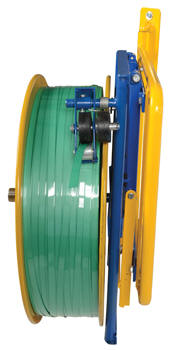

This unique Wall-Mounted Strapping Dispenser is for use with steel and poly strapping.  The mounting bracket pivots to allow for use in any direction. The unit also pivots up to 180 to allow for easier loading of new strapping coils.    Works with strapping core sizes of 16" x 3", 16" x 6" and 8" x 8", available here.



Industrial Duty Strapping Cart
Model PDF Acceptable
Strapping
Overall Size
(WxDxH)
Wt.
(lbs)
STRAP-WALL Warranty PDFCompliance Certificate Steel & Poly 29-1/2"x10-3/4"x30-3/8" 125

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
