WB01372_.gif (406 bytes) Medium Duty Powered Stretch Wrap Machines - SWA series

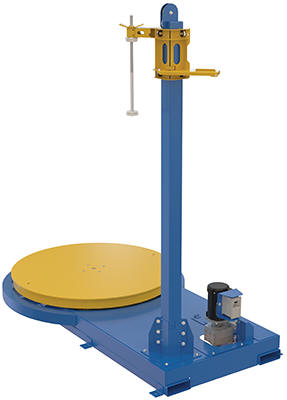

model SWA-54 shown

Vestil's Medium Duty Powered Stretch Wrap Machines offer the same great features as our standard duty machines in a 5,000-lb capacity unit. Complete with a powered turntable and counter-balanced stretch film mast. To operate, depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. A hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Please contact factory for Approach Ramp options on these models.

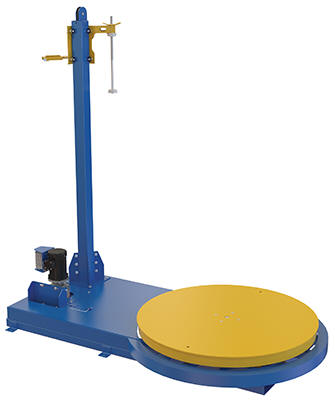

model SWA-54




Approach Ramp
model SWA-R-4836

Film Roll
Model: SWA-FILM

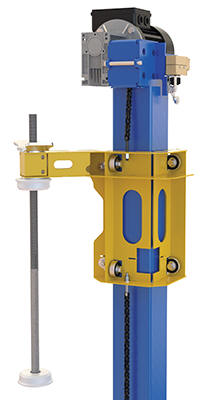

POWERED MAST OPTION
(factory installed)
model SWA-5460-PMO
Stretch Wrap Machine
Model PDF's Turntable
Dia.
Max. Load
Diameter
Max. Wrap
Height
Turntable
Height
Capacity
(lbs)
Wt.
(lbs)
SWA-54 Compliance Certificate 54" 90" 80 11-1/16" 5,000 1305
SWA-60 Compliance Certificate 60" 90" 80 11-1/16" 5,000 1393
Stretch Wrap Machine Accessories
Model PDF Description Wt.
(lbs)
SWA-5460-PMO   POWERED MAST OPTION (54" & 60" DIAMETER) - FACTORY INSTALLED 144
SWA-5460-PMO-RF   115V Powered mast option (retrofit - field installed) 194
SWA-54-SCALE Digital Scale Option for SWA-54 - Adds 3-1/2"to  Turntable Height (Factory Installed) 500
SWA-60-SCALE Digital Scale Option for SWA-60 - Adds 3-1/2"to Turntable Height (Factory Installed) 500
SWA-SCALE   Digital Scale Option (Available only on SWA-48 & Adds 3-1/2 to turntable height Factory Installed) 339
SWA-COUNT Counter Option, keep track of carousel rotation 1
SWA-NRTL-COMP INCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB (NRTL) 601
SWA-INDEX Auto-indexing 90, 120, or 180 1
SWA-NM   SWA with no mast 601

*  Powered Stretch Wrap Machine

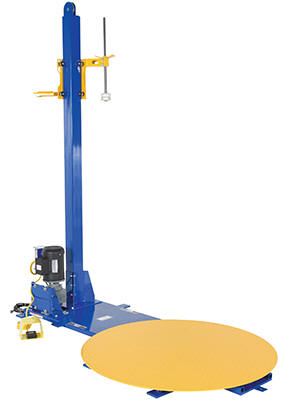

model SWA-48

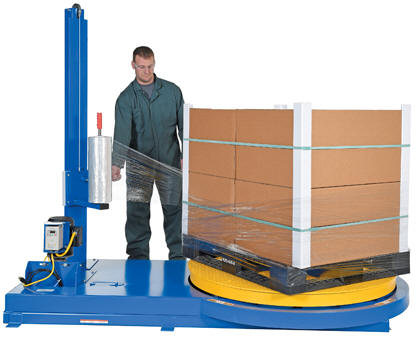

Increase productivity in the shipping department or at the end of a production line. This unit is complete with a 48" diameter powered turntable and counter-balanced stretch film mast. Easy to operate, simply depress the foot pedal and manually move the mast up and down. Powered by a 115V, 1/2 HP motor with soft start/stop and variable speed control. Variable R.P.M. 3-12. Unit comes with one film rod with special spacers that can be used with any height roll of stretch wrap material between 10" and 20". Ships with mast knock-down. Some assembly required. The Approach Ramp option allows the operator to load and unload the machine with a pallet truck (model SWA-48 only). SWA-48-PMO is the SWA-48 with a powered mast. Comes with a 24V hand control to work with those taller loads. The hand held control is used to raise/lower the film while the foot control is used to operate the turntable.

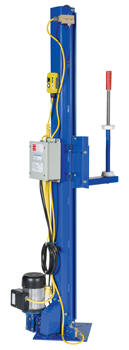

model SWA-48-PMO
with Power Mast Option

Stretch Wrap Machine
Model PDF's Turntable
Dia.
Max. Load
Diameter
Max. Wrap Height Turntable
Height
Capacity
(lbs)
Wt.
(lbs)
SWA-48 Compliance Certificate 48" 62" 83-3/4 2-3/8" 4,000 594
SWA-48-PMO 48" 62" 83-3/4 2-3/8" 4,000 619
Stretch Wrap Machine Accessories
Model PDF Description Wt.
(lbs)
SWA-PMO-RF Compliance Certificate 115V Powered mast option (retrofit - field installed) 194
SWA-SCALE   Digital Scale Option (Available only on SWA-48 & Adds 3-1/2 to turntable height Factory Installed) 339
SWA-VCC-208/230-1   VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE -
SWA-VCC-208/230-3   VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE -
SWA-VCC-460-3 VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE -
SWA-R-4836 48"Wx36"Lx2"H Approach Ramp (for electric pallet trucks) 170
SWA-R-4848 48"Wx48"Lx2"H Approach Ramp (for manual pallet trucks) 212
SWA-R-48100-SCL 48"Wx100"Lx6"H Approach Ramp for SWA-48 with scale Electric & Manual pallet trucks) 600
SWA-FILM 20"Wx80ga. x 6,000 FT x 3" Core (one roll) 42
SWA-COUNT Counter Option, keep track of carousel rotation 1
SWA-NRTL-COMP INCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB (NRTL) 601
SWA-INDEX Auto-indexing 90, 120, or 180 1
