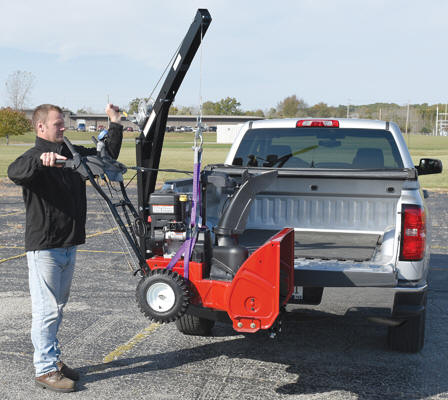

Hitch-Mounted Truck Jib Crane easily mounts in standard Class III or higher 2" receivers. Installation and use requires no modifications to receiver or truck. Unit may be adjusted/leveled for best use in all conditions. Maximum uniform lifting capacity is 600 pounds. Manual hand brake winch with 25 feet of 3/16" diameter cable and lifting hook included. Offset upright design does not restrict tailgate use while installed.  Crane may be installed on either side of truck as required. Rugged, welded steel construction with powder-coat black finish.


Hitch-Mounted Truck Jib Crane
Model PDF's Max. Boom
Height
Boom
Reach
Overall Size
(WxLxH)
Capacity
(lbs)
 Wt.
(lbs)
WTJ-HITCH Compliance Certificate 84-5/8" 47-1/2" 19-13/16" x 43-5/16" x 74-5/16" 600 168
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



WTJ-HITCH Owners Manual
