Inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. Units are 120V, 1 phase totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.

Shutter Mounted Exhaust Fans
Model PDFs Blade Size Hp of Motor AMPS High CFM High CFM MED CFM
Low
 Wt. (lbs)
SME-12 Warranty PDF 12" 1/12 1.1 825 710 560 16
SME-18 Warranty PDF 18" 1/8 2.2 2300 2100 1850 25
SME-24 Warranty PDF 24" 1/4 2.5 3400   2770 41
SME-30 Warranty PDF 30" 1/4 2.7 3950   3080 50



Pedestal Mount & Wall Mount

Two speed, 115V, 1 phase, ball bearing, totally enclosed and permanently lubricated Industrial Duty Circulator Fan. Pull chain switch with a 12 foot long cord and an SJT type 3 conductor. Meets OSHA standards and is ETL C/US listed. 1/4 HP electric motor.

Industrial Duty Circulator Fan
Model PDFs Blade
Size
Mounting
Style
AMPS
High
CFM
High
CFM
Low
Wt.
(lbs)
ICRF-24-P Warranty PDF 24" Pedestal 2.5 6800 5000 75
ICRF-24-W Warranty PDF 24" Wall 2.5 6800 5000 49
ICRF-30-P Warranty PDF 30" Pedestal 2.7 7900 6000 78
ICRF-30-W Warranty PDF 30" Wall 2.7 7900 6000 48
Oscillating Style
ICRF-24-PO Warranty PDF 24" Pedestal 2.5 6800 5000 79
ICRF-24-WO Warranty PDF 24" Wall 2.5 680 5000 49
ICRF-30-PO Warranty PDF 30" Pedestal 2.7 7900 6000 78
ICRF-30-WO Warranty PDF 30" Wall 2.7 7900 6000 53




Two speed, 115V, 1 phase, ball bearing, totally enclosed, and permanently lubricated Industrial Duty Circulator Fan. Pull chain switch with a 12 foot long SJT type 3 conductor cord. Meets OSHA standards and is ETL C/US listed. 1/3 HP electric motor.

High Performance Circular Fans
Model PDFs Blade
Size
Mounting
Style
AMPS
High
CFM
High
CFM
Low
Wt.
(lbs)
HPCR-30-P Warranty PDF 30" Pedestal 3.4 8200 6200 78
HPCR-30-W Warranty PDF 30" Wall 3.4 8200 6200 48
HPCR-30-I Warranty PDF 30" I-Beam 3.4 8200 6200 52
HPCR-30-C Warranty PDF 30" Ceiling 3.4 8200 6200 48




The two speed, 115V, 1 phase, ball bearing, Portable Blower has a totally enclosed motor. The fan also features 3 paddle style steel blades and 8" rubber wheels. It has a rocker switch with a 15' SJT type 3 conductor power cord. Meets OSHA standards. ETL C/US listed.

Direct Drive Blower
Model PDFs Blade
Size
RPM
High
AMPS
High
CFM
High
CFM
Low
 Wt.
(lbs)
DDB-36 Warranty PDF 36" 1100 5.5 12500 9000 72



model WSF-12

Three speed, 120V, 1 phase, totally enclosed, permanently lubricated motor Work Station Fan. Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface. Pull chain switch on a 10 foot long SJT type 3 conductor cord. Meets OSHA standards and is ETL C/US listed.


model WSF-18-F

Work Station Fans
Model PDFs Blade
Size
Mounting
Style
AMPS
High
CFM
High
CFM
Low
Wt.
(lbs)
WSF-12 Warranty PDF 12" Wall 1.1 1650 1120 17
WSF-18 Warranty PDF 18" Wall 2.2 4600 3200 26
WSF-18-F Warranty PDF 18" Floor 1.5 4600 3200 23

back to top^



model PWSF-18H-TE

The three (3) speed, ball bearing, Portable Work Station Fan is totally enclosed and permanently lubricated. This fan has a rotary switch, 360 tilting head, 10 foot long SJT type 2 conductor cord, and coated steel guard. Steel hub/spider aluminum paddle blades and meets OSHA standards. Overall size is 25"W x 27"L x 53"H. ETL C/US listed.

Portable Work Station Fan
Model PDFs Blade
Diameter
Mounting Style CFM
High
CFM
Medium
CFM
Low
Wt.
(lbs)
PWSF-18H-TE Warranty PDF 18" Pedestal 4600 4200 3200 35

back to top^

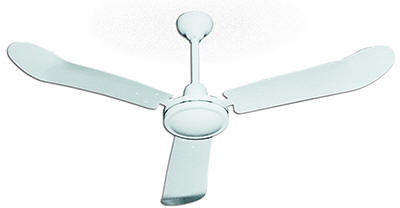

Lower winter heating costs by  recovering residual heat trapped at roof level. Fully assembled except blade bolt down, 3 conductor cord, 30" long with plug. All metal construction, with white epoxy finish, and aluminum paddles. Fan has 18" down rod with safety cable.  Speed controls, and reversion switches available, please contact factory.

Industrial Ceiling Fans
Model PDFs Type Size Voltage/
Phase
CFM Wt.
(lbs)
ICF-48 Warranty PDF Down Draft 48" 115V, 1ph 17000 20
ICF-56 Warranty PDF Down Draft 56" 115V, 1ph 21000 21
ICF-56R Warranty PDF Reversible 56" 115V, 1ph 21000 21

back to top^




Two speed, 115V, 1 phase, ball bearing Commercial Circulator Fan. Pull chain switch with a 9 foot long cord and an SJT type 3 conductor. Meets OSHA standards and is UL listed. 1/4 HP electric motor. These Circulator Fans do not have a totally enclosed motor. They should be used in a clean and dry commercial application.

Commercial Circulator Fans
Model PDFs Blade
Diameter
Mounting
Style
Amps
High
CFM
High
CFM
Low
Wt.
(lbs)
CCRF-24-P Warranty PDF 25" Pedestal 2.3 5400 4300 63
CCRF-24-W Warranty PDF 25" Wall 2.3 5400 4300 43
CCRF-30-P Warranty PDF 30" Pedestal 2.4 6000 4800 66
CCRF-30-W Warranty PDF 30" Wall 2.4 6000 4800 46

back to top^



model DDB-C-42

The two speed, ball bearing Commercial Circulator Fan is pull chain. Meets OSHA standards and is UL C/US listed. This fan does not have a totally enclosed motor and should be used in a clean and dry commercial application. Features 8 foot long SJT type 3 conductor cord and 8" rubber wheels.

Commercial Direct Drive Portable Blower
Model PDFs Blade
Diameter
AMP
High
CFM
High
CFM
Low
Wt.
(lbs)
DDB-C-42 Warranty PDF 42" 6.5 13500 11000 93

back to top^



model MB-C-30

Two speed, 1/3 HP, 115V, 1 phase, ball bearing motor, permanently lubricated. Rocker switch (MB-C-30) or rotary switch (MB-RS-C-36) standard. 6 foot long SJT type 3 conductor cord. Meets OSHA standards and is UL listed. These Direct Drive Blowers do not have a totally enclosed motor.They should be used in a clean and dry commercial application.


model MB-RS-C-36

Commercial Direct Drive Blower
Model PDFs Blade
Diameter
AMPS
High
CFM
High
CFM
Low
Type Wt.
(lbs)
MB-C-30 Warranty PDF 30" 3.6 6300 5500 Swivel 60
MB-RS-C-36 Warranty PDF 36" 3.6 8200 7,000 Stationary 79



model FF-C-20

Three speed, 115V, 1 phase, permanently lubricated motor, with rotary switch and 7 foot long SJT type 3 conductor cord. Meets OSHA standards and is UL listed. These floor fans do not have a totally enclosed motor. They should be used in a clean and dry commercial application.

Commercial Floor Fan

Model PDFs Blade
Diameter
CFM
High
Motor HP CFM
Med
CFM
Low
Wt.
(lbs)
FF-C-12 Warranty PDF 12" 2100 1/12 1750 1500 10
FF-C-20 Warranty PDF 20" 3450 1/5 3100 2950 17

back to top^
