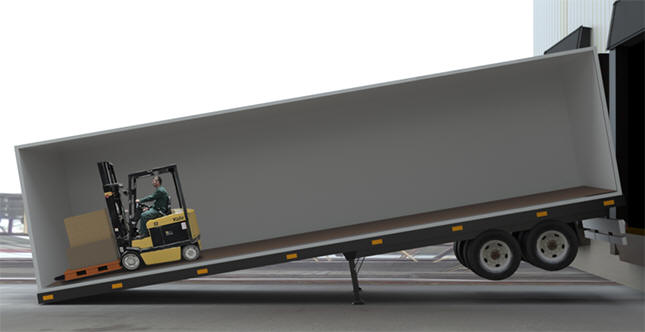

Trailer Stabilizing Jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations.  Also used to level trailers parked on sloped ground and to prevent landing gear from sinking into a soft surface. High  strength steel construction.  Flush-type zerk fitting for lubricating ACME screw. Meets OSHA regulations when used with wheel chocks.  Yellow powder coat finish for added toughness. Includes reflective collar for visibility at night.



BFSJ-2748


LO-J-BEAM

SP-TOP-BEAM

H-LO-J-BEAM

CJ-BEAM-SN
CJ-BEAM-PN

SJ-40


LO-J


HI-J

SP-TOP

SP-TOP-R

SJ-35

SJ-35-2H

SJ-35-EF







Ratchet Beam Jacks
Model PDF's Description Static
Capacity (lbs)
Lifting
Capacity (lbs)
Service
Range
Wheel Size & Type Wt. (lbs.)
BFSJ-2748 Warranty PDFPhoto GalleryCompliance Certificate Big Foot Stabilizing Jack 100,000 40,000 39-1/2" to 51" 10" hard rubber 162
LO-J-BEAM Warranty PDFPhoto GalleryCompliance Certificate Ratchet Beam Jack 100,000 40,000 40" to 51" 10"x2" hard rubber 182
LO-J-BEAM-100 Warranty PDFPhoto GalleryCompliance Certificate Ratchet Beam Jack 100,000 50,000 41" to 51" 10"x 2" hard rubber 205
SP-TOP-BEAM Warranty PDFPhoto GalleryCompliance Certificate Spin Top Beam 100,000 40,000 40"to51" 10"x2" hard rubber 200
SP-TOP-BEAM-100 Warranty PDFPhoto GalleryCompliance Certificate Spin Top Beam 100,000 50,000 40"to51" 10"x4" hard rubber 207
H-LO-J-BEAM Warranty PDFPhoto GalleryCompliance Certificate Hydraulic Beam Jack 100,000 40,000 41" to 47" 10"x2" hard rubber 175
CJ-BEAM-SN Warranty PDFPhoto GalleryCompliance Certificate Hand Crank 100,000 50,000 41" to 55" 16" Solid Foam 238
CJ-BEAM-PN Warranty PDFPhoto GalleryCompliance Certificate Hand Crank 100,000 50,000 41" to 55" 16" fully pneumatic 221
SJ-40 Warranty PDFPhoto GalleryCompliance Certificate Economy (Flat Base) 50,000 5,000 44" to 51" None 44
LO-J Warranty PDFPhoto GalleryCompliance Certificate Ratchet Jack 100,000 40,000 39" to 51" 10" hard rubber 137
HI-J Warranty PDFPhoto GalleryCompliance Certificate Ratchet 100,000 40,000 45" to 57" 10" hard rubber 141
SP-TOP Warranty PDFPhoto GalleryCompliance Certificate Spin Top 100,000 40,000 39.5" to 51" 10" hard rubber 129
SP-TOP-R Warranty PDFPhoto GalleryCompliance Certificate Ratchet 100,000 40,000 39" to 51" 10" hard rubber 138
SJ-35 Warranty PDFPhoto GalleryCompliance Certificate Economy (Rounded Base) 50,000 5,000 44" to 51" None 39
SJ-35-2H Warranty PDFPhoto GalleryCompliance Certificate Economy 50,000 5,000 44" to 51" None 39
SJ-35-EF Warranty PDFPhoto GalleryCompliance Certificate Economy 50,000 5,000 41"to 57.5" 8" hard rubber 57
Model Description Wt.
(lbs)
JACK-100 Compliance Certificate50,000 lb. Lifting capacity (not available on SJ series) 18
SJS-1012 Aluminum Stabilizing trailers instruction sign 1
SAJ-1012 Compliance CertificateAluminum Drivers beware instruction sign 1
  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



Trailer Stabilizing Jacks Owners Manual

Meet OSHA Specifications

OSHA 1910.178 (k) (3)
"Fixed jacks may be necessary to support a semi trailer and prevent upending during the loading or unloading when the trailer is not coupled to a tractor."
OSHA Regulation 1910.178 (k) (3) -


Hydraulic Beam Jack
The Hydraulic version of the Ratchet Beam jack is available

Stabilizing Jack Signs
Stabilizing Jack signs are available as well


model SAJ-1012


model SJS-1012
