model DSL-300-P

model DSJ-300

model DSC-300

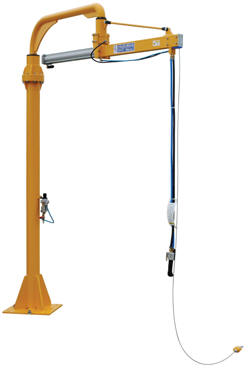

The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Arm rotation is 360 degrees. Air pressure 100 psi.

WB01372_.gif (406 bytes) Mechanical & Pneumatic Hoist Attachments

Pneumatic Vacuum Lifter is designed to lift products with smooth, fl at and non-porous surfaces.  Push button to operate vacuum to grab product. Release button to release product. Positioning of product is provided by the Air Balance Jib Lifter.

Double Hook Lifter is designed to lift virtually any type of object, either small or large, long or short, round or fl at. Simple double-hook design with mechanical operation only. Positioning of product is provided by the Hoist.

Air Balance Jib Lifter
Model PDFs Stroke Max Arm Length Capacity
(lbs)
Arm
Rotation
Air Pressure Wt. (lbs)

  Floor Mount

DSJ-300 Warranty PDF 57-1/2" 93" 250 360 100 psi 647
DSL-300 Warranty PDF 47-1/4" 78-1/4" 250 360 100 psi 697
DSC-300 Warranty PDF 78-3/4" 86-1/2" 350 360 100 psi 823

  Portable

DSJ-300-P Warranty PDF 57-1/2" 93" 250 360 100 psi 1043
DSL-300-P Warranty PDF 47-1/4" 78-1/4" 250 360 100 psi 1087
DSC-300-P Warranty PDF 78-3/4" 86-1/2" 350 360 100 psi 1219

  Ceiling Mount

DSJ-300-C Warranty PDF 57-1/2" 93" 250 360 100 psi 471
DSL-300-C Warranty PDF 47-1/4" 78-1/4" 250 360 100 psi 515
DSC-300-C Warranty PDF 78-3/4" 86-1/2" 350 360 100 psi 647
Mechanical & Pneumatic Hoist Attachments
Model PDFs Description Capacity
(lbs)
Wt. (lbs)
VAC-6 Warranty PDF Pneumatic Vacuum 250 32
LMEC-DH Warranty PDF Double Hook 250 20
