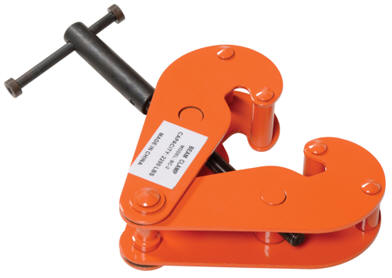

model BC-2

Designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. These versatile units can be interchanged from one gantry to another in a matter of seconds with its easy mechanical adjustment mechanism. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Steel construction and painted finish.



model BC-1


model BC-4


model BC-6


model BC-8


model BC-10

Beam Clamps
Model PDF Description Beam Flange
Width
Capacity
(lbs)
Wt.
(lbs)
BC-1 Warranty PDFCompliance Certificate Beam Clamp 3-1/8"" - 9-5/8" 1,000 10
BC-2 Warranty PDFCompliance Certificate Beam Clamp 3-1/8"" - 9-5/8" 2,000 11
BC-4 Warranty PDFCompliance Certificate Beam Clamp 3-1/8"" - 9-5/8" 4,000 12
BC-6 Warranty PDFCompliance Certificate Beam Clamp 3-1/2" - 12-1/4" 6,000 28
BC-8 Warranty PDFCompliance Certificate Beam Clamp 3-1/2" - 12-1/4" 8,000 38
BC-10 Warranty PDFCompliance Certificate Beam Clamp 3-1/2" - 12-1/4" 10,000 45
Freight Quote

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
