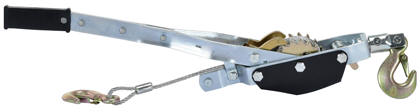

model CABLE-P4

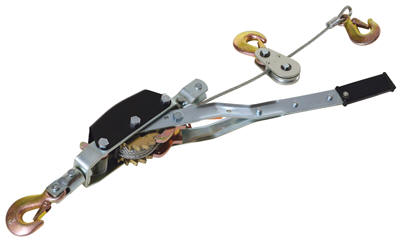

Great for use in horizontal pulling applications such as positioning equipment, stringing lines and emergencies. Can be used in both single and double-line pulling applications. Handle ratchets to take-up cable. When handle is rotated all the way back, the cable reel will free-wheel.
Handle length is 30". Minimum headroom is 24". Single-line cable length is 1⁄4" x 120" (Cable length is 60" when used double-line). Not for use in vertical lifting applications.

Galvanized Two-Speed Cable Puller
Model PDF's Single-Line
Capacity
Double-Line
Capacity
Single-Line
Cable Length
Wt.
(lbs)
CABLE-P4 Warranty PDFCompliance Certificate 2,000 lbs. 4,000 lbs. 1/4"x120" 14

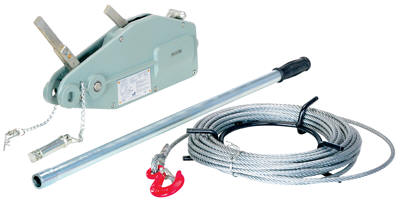

model CP-15

This product is ideal for applications requiring pulling over long distances. Pull up to 60 feet without unhooking and resetting as required when using conventional lever or hand chain hoists.  Works great for pulling horizontally. Not for use in vertical lifting applications. An operator handle is included to assist the user during the start of the cable pulling process.



model CP-30

Long Reach Cable Pullers/Lifters
Model PDF's Capacity
(lbs)
Usable Cable
Length Range
(Ft.)
Cable Diameter
(Approx. Inches)
Wt.
(lbs)
CP-15 Warranty PDFCompliance Certificate 1,500 60 5/16 36
CP-30 Warranty PDFCompliance Certificate 3,000 60 7/16 64

Freight Quote

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
