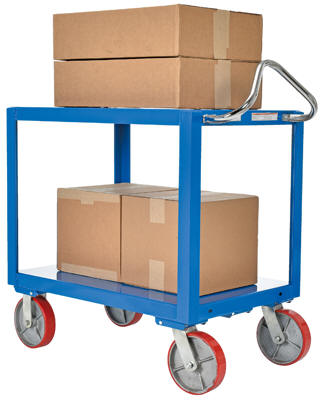

model DH-PU2.4-2436

The Ergo-Handle Cart is constructed of heavy-duty steel to handle uniform loads up to 4,000 pounds.  The patented ergonomic handle decreases fatigue by allowing the operator to easily maneuver the cart.
Rolls on 2 rigid, 2 swivel 8" x 2" casters with roller bearings. Invertible bolt-on chrome ergonomic handle designed for individual height comfort and handling of long loads.


model DH-PH4-2448-3



Ergo-Handle Carts
Model PDF's Platform Size (WxL) Shelf
Clearance
Top Shelf Height Maximum Capacity Cart/ Shelf Weight
(lbs)
8" x 2" Glass Filled Nylon Casters
2-Shelf Units
DH-PH4-2436 Warranty PDFCompliance Certificate 24" x 36" 22-1/2" 36-3/16" 4,000/2,000 lb. 220
DH-PH4-2448 Warranty PDFCompliance Certificate 24" x 48" 22-1/2" 36-3/16" 4,000/2,000 lb. 233
DH-PH4-2460 Warranty PDFCompliance Certificate 24" x 60" 22-1/2" 36-3/16" 4,000/2,000 lb. 275
DH-PH4-2472 Warranty PDFCompliance Certificate 24"x72" 22-1/2" 36-3/16" 4,000/2,000 lb. 280
DH-PH4-3060 Warranty PDFCompliance Certificate 30 x 60 22-1/2" 36-3/16" 4,000/2,000 lb. 285
DH-PH4-3448 Warranty PDFCompliance Certificate 34"x48" 22-1/2" 36-3/16" 4,000/2,000 lb. 287
DH-PH4-3460 Warranty PDFCompliance Certificate 34"x60" 22-1/2" 36-3/16" 4,000/2,000 lb. 316
DH-PH4-3472 Warranty PDFCompliance Certificate 34"x72" 22-1/2" 36-3/16" 4,000/2,000 lb. 339
3-Shelf Units
DH-PH4-2436-3 Warranty PDFCompliance Certificate 24"x36" 10-1/4 36-3/16" 4,000/2,000 lb. 230
DH-PH4-2448-3 Warranty PDFCompliance Certificate 24"x48" 10-1/4 36-3/16" 4,000/2,000 lb. 286
DH-PH4-2460-3 Warranty PDFCompliance Certificate 24"x60" 10-1/4 36-3/16" 4,000/2,000 lb. 291
DH-PH4-2472-3 Warranty PDFCompliance Certificate 24"x72" 10-1/4 36-3/16" 4,000/2,000 lb. 326
DH-PH4-3060-3 Warranty PDFCompliance Certificate 30"x60" 10-1/4 36-3/16" 4,000/2,000 lb. 427
DH-PH4-3448-3 Warranty PDFCompliance Certificate 34"x48" 10-1/4 36-3/16" 4,000/2,000 lb. 313
DH-PH4-3460-3 Warranty PDFCompliance Certificate 34"x60" 10-1/4 36-3/16" 4,000/2,000 lb. 358
DH-PH4-3472-3 Warranty PDFCompliance Certificate 34"x72" 10-1/4 36-3/16" 4,000/2,000 lb. 403

8"x 2" Polyurethane Casters

2-Shelf Units

DH-PU2.4-2436 Warranty PDFCompliance Certificate 24" x 36" 22-1/2" 36-1/8" 4,000/2,000 lb. 202
DH-PU2.4-2448 Warranty PDFCompliance Certificate 24" x 48" 22-1/2" 36-1/8" 4,000/2,000 lb. 216
DH-PU2.4-3060 Warranty PDFCompliance Certificate 30" x 60" 22-1/2" 36-1/8" 4,000/2,000 lb. 298

8"x 2" Mold-On-Rubber Casters

2-Shelf Units

DH-MR2-2436 Warranty PDFCompliance Certificate 24" x 36" 22-1/2" 36-1/8" 2,400/2,000 lb 225
DH-MR2-2448 Warranty PDFCompliance Certificate 24" x 48" 22-1/2" 36-1/8" 2,400/2,000 lb 229
DH-MR2-3060 Warranty PDFCompliance Certificate 30" x 60" 22-1/2" 36-1/8" 2,400/2,000 lb 295

Options

Model PDF Description Size
(WxL)
Lip
Height
Wt.
(lbs)
ERGO-FL  OPTIONAL MANUAL FOOT-OPERATED FLOOR LOCK 6

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



model DH-PH4-2436-D

The Ergo-Handle Cart with Drain has the patented ergonomic handle that decreases fatigue by allowing the operator to easily maneuver the cart.  The ergonomic handle has an invertible bolt-on chrome design that is great for individual height comfort and handling. The top shelf has a perimeter retaining edge that is slightly slanted towards the drain hole which gathers debris.  To use the drain system, simply turn the ball valve to empty liquid into container of your choice.  Each unit rolls on two (2) rigid and two (2) swivel casters with roller bearings.

Standard Features:

Heavy-duty welded steel construction

Removable and reversible chrome-plated ergonomic handle

Each unit includes (2) rigid and (2) swivel casters with roller bearings

Powder coat yellow finish

Available with optional foot-operated floor lock

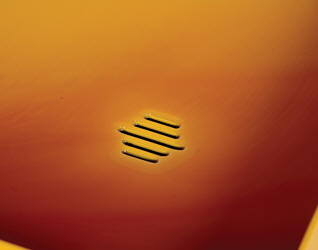

Grated Drain Hole

Ergo-Handle Carts with Drain
Model PDF Platform Size
(WxL)
Shelf
Clearance
Top Shelf
Height
Max. Capacity
Cart/Shelf
Wt.
(lbs)

8" x 2" Glass Filled Nylon Casters

DH-PH4-2436-D Warranty PDFCompliance Certificate 23-13/16"x35-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 207
DH-PH4-2448-D Warranty PDFCompliance Certificate 23-13/16"x47-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 233
DH-PH4-2460-D Warranty PDFCompliance Certificate 23-13/16"x59-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 240
DH-PH4-2472-D Warranty PDFCompliance Certificate 23-13/16"x71-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 265
DH-PH4-3060-D Warranty PDFCompliance Certificate 29-13/16"x59-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 267
DH-PH4-3448-D Warranty PDFCompliance Certificate 34"x47-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 256
DH-PH4-3460-D Warranty PDFCompliance Certificate 34"x59-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 288
DH-PH4-3472-D Warranty PDFCompliance Certificate 34"x71-13/16" 20 3/4" 36-3/16 4,000/2,000 lb. 320

8" x 2 Polyurethane Casters

DH-PU2.4-2436-D Warranty PDFCompliance Certificate 23-13/16"x35-13/16" 20 3/4" 36-3/8 4,000/2,000 lb. 202
DH-PU2.4-2448-D Warranty PDFCompliance Certificate 23-13/16"x47-13/16" 20 3/4" 36-3/8 4,000/2,000 lb. 218
DH-PU2.4-3060-D Warranty PDFCompliance Certificate 30"x59-13/16" 20 3/4" 36-3/8 4,000/2,000 lb. 298

8" x 2 Mold-on-Rubber Casters

DH-MR2-2436-D Warranty PDFCompliance Certificate 23-13/16x35-13/16 20 3/4" 36-1/8 2,400/2,000 lb. 208
DH-MR2-2448-D Warranty PDFCompliance Certificate 23-13/16x47-13/16 20 3/4" 36-1/8 2,400/2,000 lb. 233
DH-MR2-3060-D Warranty PDFCompliance Certificate 29-13/16x59-13/16 20 3/4" 36-1/8 2,400/2,000 lb. 287
ERGO-FL Warranty PDFCompliance Certificate Optional manual foot-operated floor lock 6

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

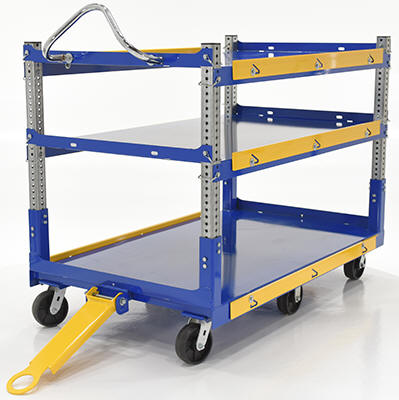

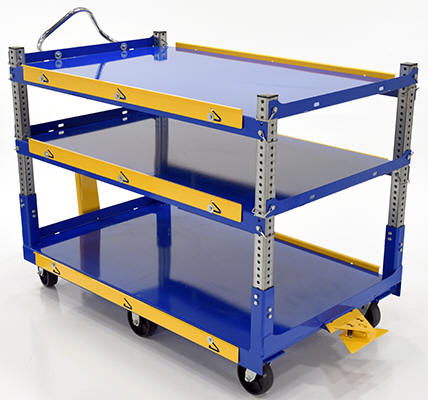

model AEC-3660-3-GFN

Adjustable Ergo Carts
Model PDFs Deck Size
(WxL)
Top
Shelf
Height
Middle
Shelf
Height
Wheel
Type
Wt.
(lbs)
AEC-3660-3-GFN Compliance Certificate 35-5/16"x55-3/8" 42-7/8" 29-7/8" Glass Filled Nylon 335
AEC-3660-3-MR Compliance Certificate 35-5/16"x55-3/8" 42-7/8" 29-7/8" Molded Rubber 335

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
