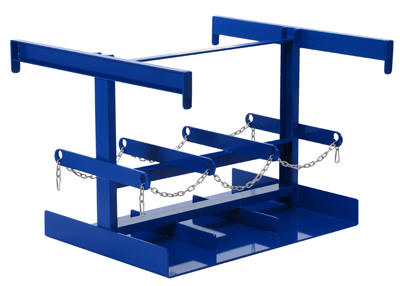

model CYL-P-4



model CYL-P-6


model PJ-CYL-4


model PJ-TRUCK-4

Transport cylinders safely with casters, overhead lifting assembly, fork mounted or pallet jack style cylinder caddies. These units can hold anywhere from 2 to 8 cylinders and come complete with safety chains to secure the cylinders in place. Made of all steel construction, these units hold cylinders up to 9-1/2" in diameter. Includes web ratchet retaining strap and edge lip for added safety.


model CYL-TRUCK-6
(Features Bolt-On Casters)




model CYL-P-4-LUG


model CYL-P-6-LUG




model PJ-CYL-2

Cylinder Caddies
Model PDF's Use
With
Uniform
Capacity
Number of
Cylinders
Wt.
(lbs)
 Cylinder Caddy (No Casters)
CYL-P-4 Warranty PDFPhoto GalleryCompliance Certificate Fork Truck 800 lbs. 4 173
CYL-P-6 Warranty PDFPhoto GalleryCompliance Certificate Fork Truck 800 lbs. 6 188
CYL-P-8 Warranty PDFCompliance Certificate Fork Truck 800 lbs. 8 231
PJ-CYL-2 Warranty PDFPhoto GalleryCompliance Certificate Pallet Truck 400 lbs. 2 49
PJ-CYL-4 Warranty PDFPhoto GalleryCompliance Certificate Pallet Truck 600 lbs. 4 90
 Cylinder Caddies With 4" Poly Swivel With Lock Casters (Bolt-On)
CYL-TRUCK-4 Warranty PDFCompliance Certificate Fork Truck 800 lbs. 4 212
CYL-TRUCK-6 Warranty PDFPhoto GalleryCompliance Certificate Fork Truck 800 lbs. 6 278
CYL-TRUCK-8 Warranty PDFCompliance Certificate Fork Truck 800 lbs. 8 297
Cylinder Caddies with 4" Poly, two (2) Swivel with Lock and two (2) Rigid Casters (Bolt-on)
PJ-TRUCK-2 Warranty PDFCompliance Certificate ---- 400 lbs. 2 88
PJ-TRUCK-4 Warranty PDFCompliance Certificate ---- 600 lbs. 4 139

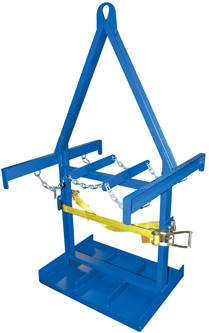

 Cylinder Caddy with Overhead Lifting Assembly
CYL-P-4-LUG Warranty PDFPhoto GalleryCompliance Certificate Fork Truck 800 lbs. 4 223
CYL-P-6-LUG Warranty PDFPhoto GalleryCompliance Certificate Fork Truck 800 lbs. 6 228
CYL-P-8-LUG Warranty PDFPhoto GalleryCompliance Certificate Fork Truck 800 lbs. 8 281
*Retrofit caster option available, model PJ-CYL-CK

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model LP-170

Holds up to six (6) LP tanks up to 12" in diameter each. Made of all steel construction.  Safety chains to hold the tanks in place are standard. Portable with fork truck.

Fork Truck LP Tank Storage
Model PDF's Overall Size
(WxLxH)
Accommodates
Cylinders
Wt.
(lbs)
LP-170 Warranty PDFPhoto GalleryCompliance Certificate 38-1/4" x 39-1/8"x 29" 12"DIA.x24"H 258
CYL-CK Four (4) Swivel Poly Casters with Lock 39
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
