        CYL-DLX-1-PN                                 CYL-DLX-1-HR

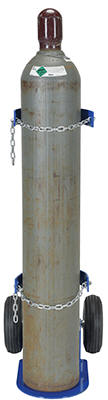

Transport cylinders up to 11." in diameter from workstation to workstation. Nose plate measures 12"W x 15"D. The deluxe version, feature roller guides attached to the nose plate. The hard rubber roller guides measure 4" x 1" These wheels allow for easier entry onto the nose plate. Secure the cylinder with the included restraint chains. Tilt unit back and transport. Units ships knockdown.


model CYL-D-1-PN


model CYL-D-1-HR

Portable Cylinder Lifter

Model PDF Overall Size
(W x L x H)
Wheel
Size
Wheel
Type
Wt.
(lbs)

Deluxe

CYL-DLX-1-HR Warranty PDFPhoto GalleryCompliance Certificate 19" x 26-15/16" x 5-15/16" 10" x 2" Hard Rubber 71
CYL-DLX-1-PN Warranty PDFPhoto GalleryCompliance Certificate 19" x 27-1/16" x 5-15/16" 10" x 3" Pneumatic 86

Economy

CYL-D-1-HR Warranty PDFPhoto GalleryCompliance Certificate 15-3/8" x 24-15/16" x 53-31/32" 10" x 2" Hard Rubber 65
CYL-D-1-PN Warranty PDFPhoto GalleryCompliance Certificate 16-5/8" x 25-1/16" x 54-3/32" 10" x 3" Pneumatic 60

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
