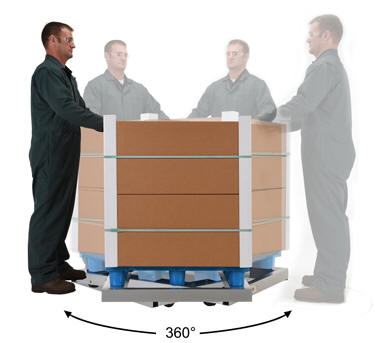

Tilt style allows for spinning on center line axis

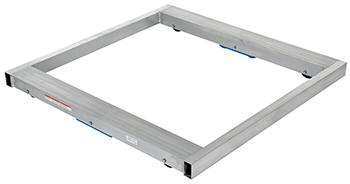

model DOL-4048-6T

Designed to transport pallets with ease. All welded  aluminum construction is durable yet lightweight. Features heavy-duty 3" wide x 3" diameter phenolic rollers for easy portability. Choose from either tilt or non-tilt styles. Tilt style allows for easier turning than non-tilt style. Optional loops/handle and a center support crossbar are available. Dolly height is 4-1/8".

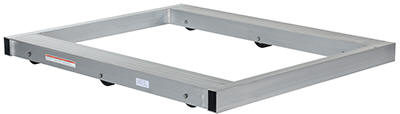

model DOL-3648-6NT

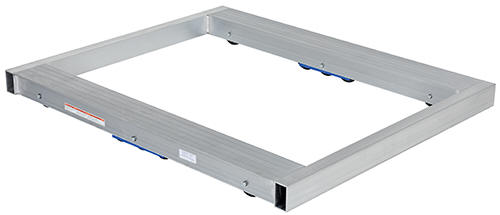

model DOL-4048-10T

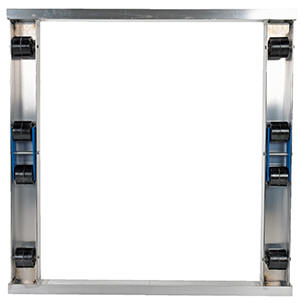

model DOL-4848-8NT

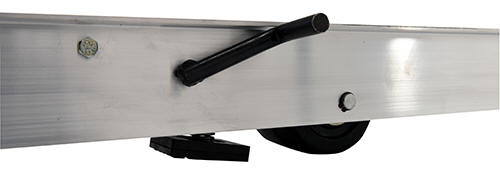

Floor Lock Option
Factory Installed.
Model DOL-FL-LK


DOL Series Survey Sheet
to help
get the exact size you need!

Aluminum Pallet Dollies
Model PDF's Overall Size
(WxL)
Capacity
(lbs)
Number
Of Rollers
Deck
Style
Wt.
(lbs)
DOL-3636-6NT* Warranty PDFCompliance Certificate 36"x36" 4,000 6 Non-Tilt 32
DOL-3642-6NT Warranty PDFCompliance Certificate 36"x42" 4,000 6 Non-Tilt 33
DOL-3648-6NT Warranty PDFCompliance Certificate 36"x48" 4,000 6 Non-Tilt 44
DOL-4048-6NT Warranty PDFCompliance Certificate 40"x48" 4,000 6 Non-Tilt 73
DOL-4242-6NT Warranty PDFCompliance Certificate 42"x42" 4,000 6 Non-Tilt 71
DOL-4248-6NT Warranty PDFCompliance Certificate 42"x48" 4,000 6 Non-Tilt 80
DOL-4848-6NT Warranty PDFCompliance Certificate 48"x48" 4,000 6 Non-Tilt 85
DOL-4848-8NT Warranty PDFCompliance Certificate 48"x48" 6,000 8 Non-Tilt 91
DOL-4848-10NT Warranty PDFCompliance Certificate 48"x48" 8,000 10 Non-Tilt 97
DOL-3636-6T* Warranty PDFCompliance Certificate 36"x36" 4,000 6 Tilt 32
DOL-3642-6T Warranty PDFCompliance Certificate 36"x42" 4,000 6 Tilt 33
DOL-3648-6T Warranty PDFCompliance Certificate 36"x48" 4,000 6 Tilt 44
DOL-4048-6T Warranty PDFCompliance Certificate 40"x48" 4,000 6 Tilt 73
DOL-4248-6T Warranty PDFCompliance Certificate 42"x48" 4,000 6 Tilt 71
DOL-4242-6T Warranty PDFCompliance Certificate 42"x42" 4,000 6 Tilt 80
DOL-4848-6T Warranty PDFCompliance Certificate 48"x48" 4,000 6 Tilt 85
DOL-3636-8T* Warranty PDFCompliance Certificate 36"x36" 6,000 8 Tilt 38
DOL-3642-8T Warranty PDFCompliance Certificate 36"x42" 6,000 8 Tilt 39
DOL-3648-8T Warranty PDFCompliance Certificate 36"x48" 6,000 8 Tilt 40
DOL-4048-8T Warranty PDFCompliance Certificate 40"x48" 6,000 8 Tilt 79
DOL-4242-8T Warranty PDFCompliance Certificate 42"x42" 6,000 8 Tilt 77
DOL-4848-8T Warranty PDFCompliance Certificate 48"x48" 6,000 8 Tilt 91
DOL-3636-10T* Warranty PDFCompliance Certificate 36"x36" 8,000 10 Tilt 44
DOL-3642-10T Warranty PDFCompliance Certificate 36"x42" 8,000 10 Tilt 45
DOL-3648-10T Warranty PDFCompliance Certificate 36"x48" 8,000 10 Tilt 46
DOL-4048-10T Warranty PDFCompliance Certificate 40"x48" 8,000 10 Tilt 85
DOL-4242-10T Warranty PDFCompliance Certificate 42"x42" 8,000 10 Tilt 83
DOL-4848-10T Warranty PDFCompliance Certificate 48"x48" 8,000 10 Tilt 97
DOL-FL-LK Floor Lock (Factory installed) 2
DOL-HDL Loops and Handle (Factory Installed) 2
DOL-CB Center Support Cross Bar (Factory Installed) 10

* Floor Lock not available

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



DOL Series Survey Sheet
to help get the exact size you need!


Loops and Handle work great for pulling. Includes one loop at each end of dolly and one handle.  Factory installed.  Model DOL-HDL
