model ODMD-2436-10

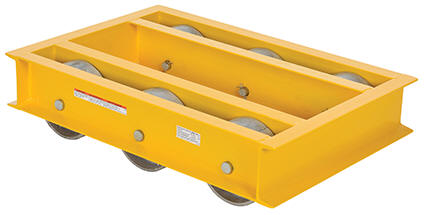

Dollies have six abrasion-resistant, high-capacity cast iron steel wheels on fixed axles to move heavy machinery, containers, and other equipment. The center wheels project lower than end wheels for easier pivoting. Welded steel construction. Model 6,000 lb. models have a 3" channel steel frame; 5" x 2" cast iron wheels have roller bearings. 10,000 lb. models have a 6" channel steel frame; 8" x 3" cast iron wheels have roller bearings. Durable baked-in powder coat finish for added toughness.

Open Deck Machinery Dolly
Model PDF's Overall Size
(WxLxH)
Center
Opening (WxL)
Uniform Static
Capacity (lbs)
Wt.
(lbs)
ODMD-2436-6 Warranty PDFCompliance Certificate 24"x36"x6-1/4 12-1/2x33-3/16 6,000 149
ODMD-2436-10 Warranty PDFCompliance Certificate 24"x36"x8-1/2 9-3/6x32-3/16 10,000 172
ODMD-3048-6 Warranty PDFCompliance Certificate 30"x48"x6-1/4 18-1/2x45-3/16 6,000 290
ODMD-3048-10 Warranty PDFCompliance Certificate 30"x48"x8-1/2 15-3/16x44-3/16 10,000 295
ODMD-3660-6 Warranty PDFCompliance Certificate 36"x60"x6-1/4 24-1/2x56-3/16 6,000 348
ODMD-3660-10 Warranty PDFCompliance Certificate 36"x60"x8-1/4" 21-3/16"x56-3/16" 10,000 358

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
