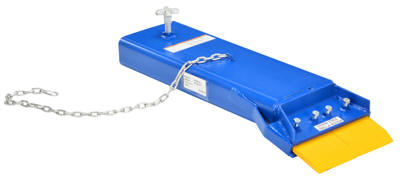

model SCRAPE-1

Designed to turn your fork truck into a floor scraper.  Works well in paint and finish rooms for removing over sprayed paint from floors.  Simply slide fork into opening and attach safety restraint to carriage for safety.  Features hardened scraping blade for long life and durability.  Blade is mounted in pivot assembly to allow it to raise up with contact against a crack or rise in the floor.  Heavy-duty welded steel construction.  Painted finish.

Fork Truck Floor Scraper
Model PDF's Blade
Width
Overall Size
(WxLxH)
Usable Fork
Opening
(WxH)
Wt.
(lbs)
SCRAPE-1 Warranty PDFCompliance Certificate 12" 13"x36-1/8"x8-5/8" 9"x3" 162

Freight Quote

Other Fork Truck Attachments >>

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
