model F4-1.25-36-CPL

Change your current fork length or buy an extra pair of forks for an emergency with our new Forged Steel Forks.  Forks are 4" wide each. Designed for class II carriage mounting.  Meets I.T.A. standards. Available with and without carriage pins.


model F4-1.50-60-CPL

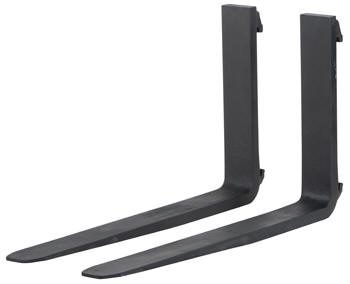

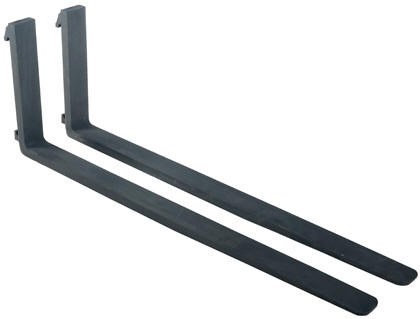

Forged Steel Forks
Model PDF Length
(Inches)
Thickness
(Inches)
Capacity
(lbs)
Wt.
(lbs)
F4-1.25-36 Warranty PDF 36 1" 3,000 201
F4-1.25-48 Warranty PDF 48 1" 3,000 205
F4-1.50-36 Warranty PDF 36 1" 4,000 210
F4-1.50-42 Warranty PDF 42 1" 4,000 249
F4-1.50-48 Warranty PDF 48 1" 4,000 277
F4-1.50-60 Warranty PDF 60 1" 4,000 328
F4-1.75-36 Warranty PDF 36 1" 5,000 251
F4-1.75-42 Warranty PDF 42 1" 5,000 277
F4-1.75-48 Warranty PDF 48 1" 5,000 309
F4-1.75-60 Warranty PDF 60 1" 5,000 344
Carriage Pin Included
F4-1.25-36-CPL Warranty PDF 36 1" 3,000 201
F4-1.25-48-CPL Warranty PDF 48 1" 3,000 205
F4-1.50-36-CPL Warranty PDF 36 1" 4,000 210
F4-1.50-42-CPL Warranty PDF 42 1" 4,000 249
F4-1.50-48-CPL Warranty PDF 48 1" 4,000 277
F4-1.50-60-CPL Warranty PDF 60 1" 4,000 328
F4-1.75-36-CPL Warranty PDF 36 1" 5,000 251
F4-1.75-42-CPL Warranty PDF 42 1" 5,000 277
F4-1.75-48-CPL Warranty PDF 48 1" 5,000 309
F4-1.75-60-CPL Warranty PDF 60 1" 5,000 344

Freight Quote

Other Fork Truck Attachments >>

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
