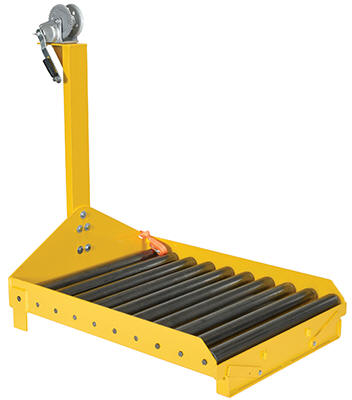

model BTC-PJ-WINCH

The Battery Transfer Platform is designed to load, unload, and transfer fork truck batteries. Features roller deck for easy battery movement. Front locking safety tabs to secure battery in cart. Welded steel construction with baked-in powder coated finish for added toughness. Models BTC-CART and BTC-Cart-WINCH, includes two (2) rigid and two (2) swivel 4 x 2 glass filled nylon casters for portability. Not pallet truck accessible, but can be lifted with a fork lift.

Models BTC-PJ and BTC-PJ-WINCH designed to accommodate most pallet trucks. Pallet truck sold separately.

Optional winch attachment, model BTC-WINCH, can be installed easily to either BTC unit with the supplied hardware. The manual winch is designed to pull battery out of fork truck.



Battery transfer Platform (for use with Pallet Truck)

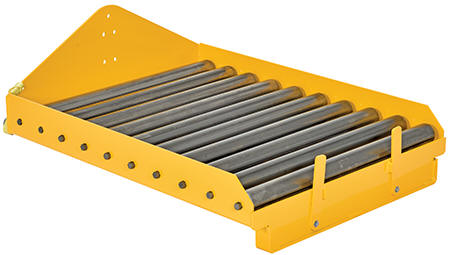

model BTC-PJ

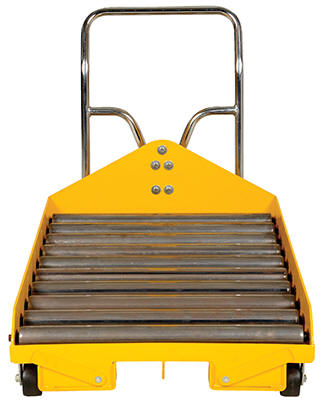

model BTC-CART



Battery transfer platform w/Winch and Casters (for use with Fork Lift)

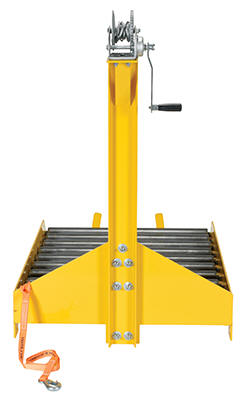

model BTC-CART-WINCH

Fork Truck Batter Movers
Model PDF's Description Overall Size (WxLxH) Cart
Capacity (lbs)
Winch
Pulling
Capacity (lbs)
Wt. (lbs)
BTC-PJ Warranty PDFCompliance Certificate Battery transfer Platform (for use with Pallet Truck) 33-1/4"x 41-1/8"x 16-1/8" 4,000 - 276
BTC-PJ-WINCH Warranty PDFCompliance Certificate Battery transfer Platform w/ Winch (for use with Pallet Truck) 33-1/4"x 48-5/8" x 52-3/16" 4,000 1,200 318
BTC-CART Warranty PDFCompliance Certificate Battery transfer platform- w/ casters (for use with fork Lift) 33-1/4" x 50-1/16" x 37-1/16" 4,000 - 303
BTC-CART-WINCH Warranty PDFCompliance Certificate Battery transfer platform w/Winch and Casters (for use with Fork Lift) 33-1/4x50-1/16x54-7/8 4,000 1,200 299
BTC-WINCH Warranty PDFCompliance Certificate  Optional winch only 52-3/16"H - 1,200 38
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
