A) model WTJ-20-3-DC

B) model WTJ-E-15-3-AC

C) model WTJ-20-4-AC-GAL

D) model WTJ-E-15-3-DC-GAL

Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.

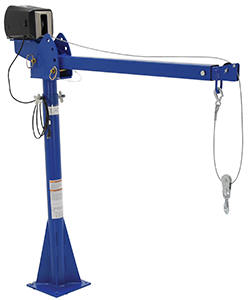

A) Structural Jib Cranes feature rotation hand brakes that offer unlimited 360 manual positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. DC models include 46 feet of 3/16" aircraft-grade wire rope with swivel hook and safety latch. AC units feature 25 feet of 7/32" cable. Folds for storage.

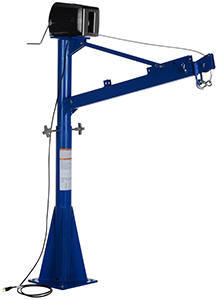

B) The economical answer to your material handling problems. Offers light-duty, intermittent use. Up to 1,500 pound uniform capacity at 36" boom extension. 360 locking manual rotation,25 feet of 7/32" cable with hook on AC units. 46 feet of 3/16" cable on DC units.

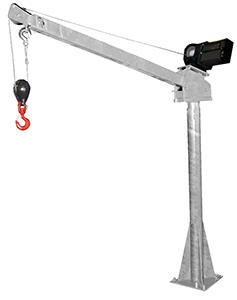

C) These cranes offer the same features as the Type A cranes with a galvanized finish.

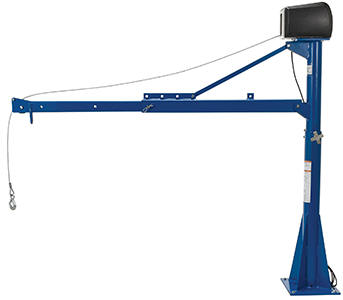

D) These cranes offer the same features as the Type B cranes with a galvanized finish.


model WTJ-20-4-AC-CSA

model WTJ-E-15-3-AC-CSA

model WTJ-20-3-DC-GAL




Power Lift Jib Cranes
Item Model PDF's Operation Capacity
(lbs)
Boom
Reach
Boom
Height
Wt
(lbs)
A WTJ-20-3-DC Warranty PDF 12V DC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 243
A WTJ-20-4-DC Warranty PDF 12V DC 2,000 51-1/4"to87-1/4" 59-1/2"to106-1/2" 273
A WTJ-20-3-AC Warranty PDF 115V AC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 280
A WTJ-20-3-AC-CSA Warranty PDF 115V AC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 280
A WTJ-20-4-AC Warranty PDF 115V AC 2,000 51-1/4"to87-1/4" 59-1/2"to106-1/2" 275
A WTJ-20-4-AC-CSA Warranty PDF 115V AC 2,000 51-1/4"to87-1/4" 59-1/2"to106-1/2" 275
B WTJ-E-15-3-DC Warranty PDF 12V DC 1,500 43-1/16"to 66-3/4" 47-1/8"-73-5/16" 213
B WTJ-E-15-3-AC Warranty PDF 115V AC 1,500 43-1/16"to 66-3/4" 47-1/8"-73-5/16" 223
B WTJ-E-15-3-AC-CSA Warranty PDF 115V AC 1,500 43-1/16"to 66-3/4" 47-1/8"-73-5/16" 223
C WTJ-20-3-DC-GAL Warranty PDF 12V DC 2,000 39-1/2"to63-1/2" 59-5/16"-95-3/4" 280
C WTJ-20-4-DC-GAL Warranty PDF 12V DC 2,000 51-1/4" to 87-1/4" 59-1/2" to 106-1/2" 273
C WTJ-20-3-AC-GAL Warranty PDF 115V AC 2,000 39-1/2"to63-1/2" 59-5/16"-95-3/4" 280
C WTJ-20-3-AC-CSA-GAL Warranty PDF 115V AC 2,000 39-1/2"to63-1/2" 59-5/16"-95-3/4" 280
C WTJ-20-4-AC-GAL Warranty PDF 115V AC 2,000 51-1/2"to87-1/2" 59-5/16"to106" 275
C WTJ-20-4-AC-CSA-GAL Warranty PDF 115V AC 2,000 51-1/2"to87-1/2" 59-5/16"to106" 275
D WTJ-E-15-3-DC-GAL Warranty PDF 12V DC 1,500 43-1/16"to66-3/4" 47"-73-3/16" 213
D WTJ-E-15-3-AC-GAL Warranty PDF 115V AC 1,500 43-1/16"to66-3/4" 47"-73-3/16" 223
D WTJ-E-15-3-AC-CSA-GAL Warranty PDF 115V AC 1,500 43-1/16"to66-3/4" 47"-73-3/16" 223
WINCH-AC-HHPB   UPGRADE AC WINCH WITH HANDHELD PUSH BUTTON CONTROL
(THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES)
5

 Click the above for Approval Drawing PDF.  Click the for Parts List PDF.  (If you have trouble viewing the PDF in the browser, try "right clicking" the icon and clicking "save target as" to save the PDF to your preferred location.)
