Roll-out shelving rack stores heavy dies, fixtures and machinery. Capacity per shelf is 1,500 lbs. with a total uniform capacity of 6,000 lbs.  Shelves roll out for convenient loading and retrieving. Can be easily loaded and unloaded with a crane, overhead hoist, forklift or stacker. Individual shelf height are adjustable on 2-3/8" centers.  Features 10 gauge steel shelves that can be extended out 20", one at a time, and locked in the extended position for maximum safety.  Top shelves are fixed, non adjustable.  Add on units are available.  All steel construction with powder coat finish.  Ships unassembled.  Three (3) slide out shelves per side of the VRSOR-114.

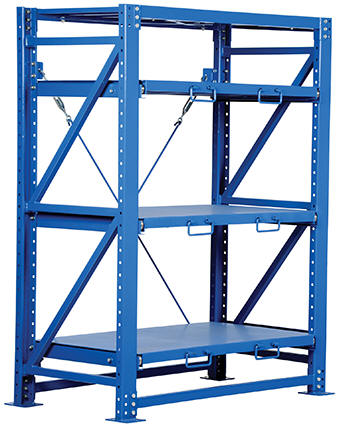

model VRSOR-54



Heavy Duty Roll-Out Shelving

Model PDFs Description Overall
Of Shelves
VRSOR-54 Warranty PDFCompliance Certificate Single 57" x 32" x 80" 51-1/4" x 32" 3 485

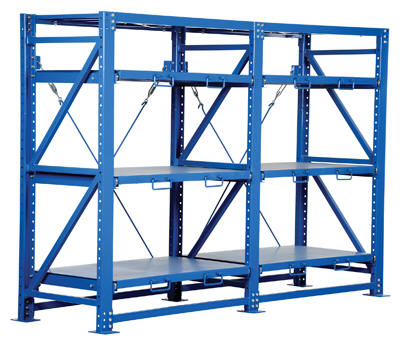

VRSOR-114 Warranty PDFCompliance Certificate Double 114" x 32" x 80" 51-1/4" x 32" 6 792
VRSOR-A-114 Warranty PDFCompliance Certificate Add-on 54" x 32" x 80" 51-1/4" x 32" 3 392

Additional Shelves


Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
