DOUBLE FORK, RIGID HOOK
model D-FORK-4-RL

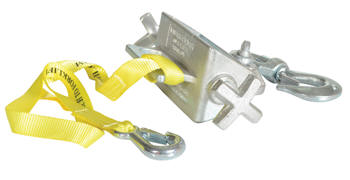

SINGLE FORK, RIGID HOOK
model S-FORK-4-6-RL

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a 48" long safety restraint and screw clamps. Available in single or double fork design. Units are zinc plated.  Hook with shackle included.  Model S-FORK-4-AT, Auto-Tension Hoisting Hook, offers a unique design and adds tension as weight is added, this unit has a yellow baked-in powder-coated toughness.



DOUBLE FORK, SWIVEL HOOK
model
D-FORK-4-SL



DOUBLE FORK, SWIVEL HOOK
model
D-FORK-10-SL

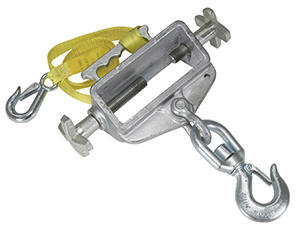

SINGLE FORK, SWIVEL HOOK
model
S-FORK-4-6-SL

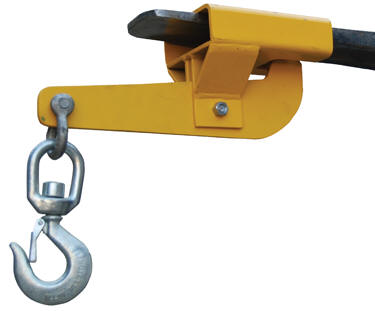

Single Fork
Auto-Tension
model S-FORK-4-AT



Hoisting Hooks
Model PDF's Hook
Type
Fork Pocket
Size (WxH)
Capacity
(lbs)
Wt.
(lbs)
S-FORK-4/6-RL Warranty PDFCompliance Certificate Single, Rigid 6"x2-1/4" 4,000 15
S-FORK-4/6-SL Warranty PDFCompliance Certificate Single, Swivel 6"x2-1/4" 4,000 15
D-FORK-4-RL Warranty PDFCompliance Certificate Double, Rigid 7-1/4"x 2" 4,000 31
D-FORK-4-SL Warranty PDFCompliance Certificate Double, Swivel 7-1/4"x 2" 4,000 31
D-FORK-10-SL Warranty PDFCompliance Certificate Double, Swivel 6-5/16"x 3" 10,000 53
S-FORK-4-AT Warranty PDFCompliance Certificate Swivel, Single Auto-Tension 5-1/2"x 1-1/2" 4,000 24

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
