model SLPT-24

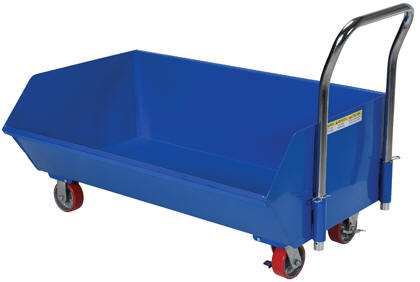

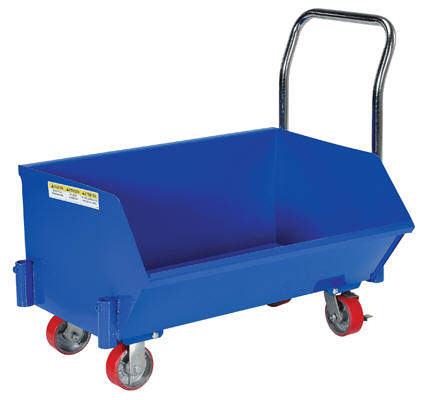

Low profile design (top chute only 22 high) allows for use under machinery and conveyors.  Tapered side allows for easy loading and unloading.  Designed for containment of scrap, chips and waste.  Constructed of welded 14-gauge steel for strength and lighter weight.  Unit rolls smoothly on (2) rigid and (2) swivel with brakes 5" x 2" poly-on-steel casters.  Push handle is removable and may be used at either end.  Blue baked-in powder coat finish for added toughness.


model SLPT-33

Low Profile Hopper

Model PDF's Volume
Cubic
Yards
Capacity (lbs) Overall Size (WxLxH) Wt. (lbs)
SLPT-24 Warranty PDFCompliance Certificate 1/4 1,000 26-1/4" x 43-1/16"x 37" 126
SLPT-33 Warranty PDFCompliance Certificate 1/3 1,000 30-3/16"x 54-1/4" x 37" 155

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
