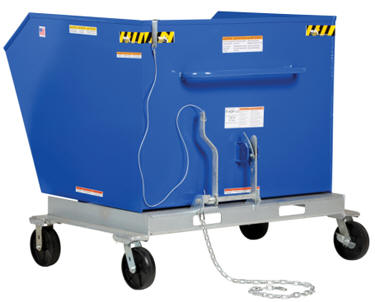

model P-HOP-1

Portable Steel Hoppers, series P-HOP make handling waste and bulk material safer and more convenient.  Fork truck entry tubes are designed to move hopper over rough terrain (not to be used as a self-dumping hopper). Usable fork pockets are 7" x 2" on 21-5/8" centers (11-5/8" fork pocket center for cubic yard capacity model only).  Foot operated caster lock is included. Units tilt with assistance from operator handle for dumping contents.  P-HOP's must be attached to fork truck when dumping.  Welded construction makes them durable.  Baked in powder coat blue finish for added toughness.



Portable Steel Hoppers

Model PDF's Size
(WxLxH)
Capacity
(lbs)
Gauge
of Steel
Volume Cubic Yards Wt.
(lbs)
P-HOP-0.5 Warranty PDFCompliance Certificate 34-13/16"x53-7/8"x37-3/16" 2,000 12 1/2 262
P-HOP-1 Warranty PDFCompliance Certificate 58-13/16"x53-15/16"x37-1/8" 2,000 12 1 389
P-HOP-1.5 Warranty PDFCompliance Certificate 58-13/16"x59-1/4"x47-5/8" 2,000 12 1-1/2 440

8"x2" Glass filled Nylon Casters: Two rigid, One swivel and One swivel with lock are standard

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

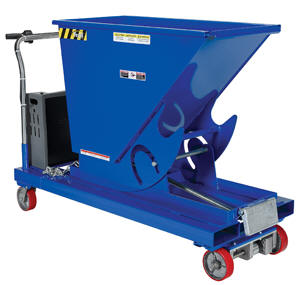

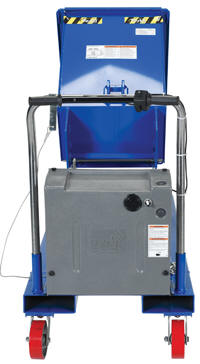

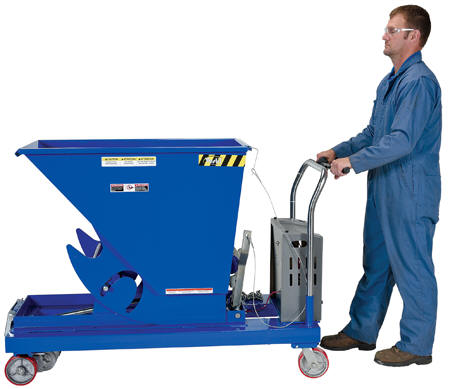

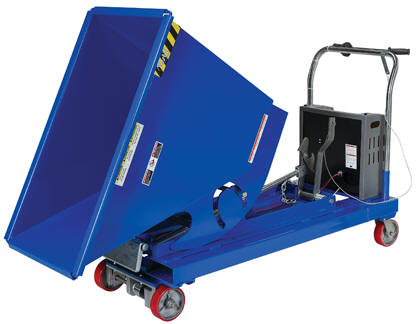

WB01372_.gif (406 bytes) Portable Steel Hopper with Power Traction Drive


model HOP-PTD

Reduce worker fatigue and injury with this 1/3 cubic yard Power Traction Drive Hopper. This factory installed option makes portable equipment easy to maneuver with its 240 turning radius, handle grip/throttle and auto reverse. This state-of-the-art option allows a single operator to perform tasks safely and ergonomically. Includes built-in electric drive motor and DC battery with on-board charger. Maximum speed is 3 mph.  Hopper and fork pockets are included. Fork pockets are 7-1/2W x 2-1/2H usable on 18 center. Must be attached to fork truck when dumping.



Portable Steel Hoppers w/ Power Traction Drive

Model PDF's Size
(WxLxH)
Capacity (lbs) Maximum Speed Volume Cubic Yards Wt. (lbs)
HOP-PTD Warranty PDFCompliance Certificate 26"x 67-3/4"x 45-5/8" 1,500 3 mph 1/3 691

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
