WB01372_.gif (406 bytes) Structural Guard Rail - drop-in and bolt-on style

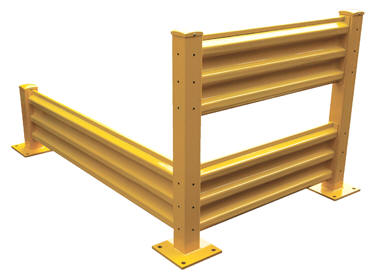

Powder Coat

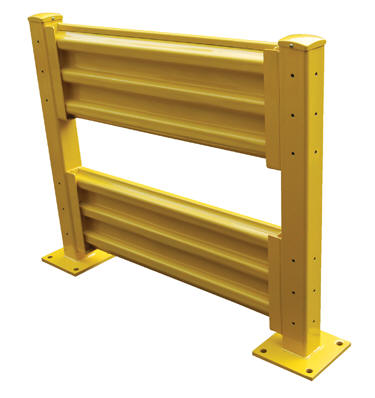

Bolt-On Style



Powder Coat
Drop-In Style


YGR-B-4

YGR-B-5

YGR-B-6

YGR-B-8

YGR-B-10

YGR-LO-4

YGR-LO-5

YGR-LO-7

YGR-LO-9

YGR-LO-10

YGR-TP18

YGR-TP42

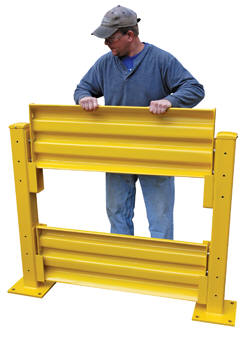

Create a modular system to protect equipment, inventory, and individuals from damage or injury with this highly visible powder coat yellow Structural Guard Rail.  Triple ridge corrugated rails are constructed from 1/8" thick material, made for high impact resistance indoors or out.  Posts are constructed of round corner 1/4" thick material. The steel base plate measures 10" square and is 5/8" thick.  Bolts and washers are provided with individual rail sections.  Concrete mounting kit is available separately.  Provide a strong barrier with easy accessibility with our Drop-In Style rails. Slide rail sections into post saddles for simple assembly.  Each Drop-In Style rail section includes two brackets. Bolt-On Style rails are designed for permanent installation.

Models YGR-TP and GGR-TP posts include mounting holes on all four sides for use in corners or center posts.

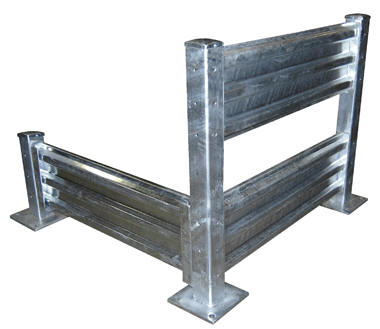

Galvanized
Bolt-On Style


Galvanized
series GGR-TP

Galvanized
Drop-In Style

GGR-B-4

GGR-B-6

GGR-B-8

GGR-B-10

GGR-LO-4

GGR-LO-6

GGR-LO-8

GGR-LO-10

GGR-TP18

GGR-TP42

Structural Guard Rail
Model PDF Color Height Length Mounting
Posts
Required
Weight
(lbs)
Structural Guard Rail Section - Drop-In Style (2 Brackets Included Per Rail)
YGR-LO-3 Warranty PDF Yellow 15" 29-7/8" 2 38
YGR-LO-4 Warranty PDF Yellow 15" 41-7/8" 2 58
YGR-LO-5 Warranty PDF Yellow 15" 53-7/8" 2 73
YGR-LO-6 Warranty PDF Yellow 15" 65-7/8" 2 85
YGR-LO-7 Warranty PDF Yellow 15" 77-7/8" 2 97
YGR-LO-8 Warranty PDF Yellow 15" 89-7/8" 2 109
YGR-LO-9 Warranty PDF Yellow 15" 101-7/8" 2 121
YGR-LO-10 Warranty PDF Yellow 15" 113-7/8" 2 131
GGR-LO-4 Warranty PDF Galvanized 15" 41-7/8" 2 61
GGR-LO-6 Warranty PDF Galvanized 15" 65-7/8" 2 85
GGR-LO-8 Warranty PDF Galvanized 15" 89-7/8" 2 109
GGR-LO-10 Warranty PDF Galvanized 15" 113-7/8" 2 133
Structural Guard Rail Section - Bolt-On Style
YGR-B-3 Warranty PDF Yellow 15" 29-7/8" 2 36
YGR-B-4 Warranty PDF Yellow 15" 41-7/8" 2 45
YGR-B-5 Warranty PDF Yellow 15" 53-7/8" 2 60
YGR-B-6 Warranty PDF Yellow 15" 65-7/8" 2 72
YGR-B-7 Warranty PDF Yellow 15" 77-7/8" 2 84
YGR-B-8 Warranty PDF Yellow 15" 89-7/8" 2 96
YGR-B-9 Warranty PDF Yellow 15" 101-7/8" 2 108
YGR-B-10 Warranty PDF Yellow 15" 113-7/8" 2 120
GGR-B-4 Warranty PDF Galvanized 15" 41-7/8" 2 48
GGR-B-6 Warranty PDF Galvanized 15" 65-7/8" 2 72
GGR-B-8 Warranty PDF Galvanized 15" 89-7/8" 2 96
GGR-B-10 Warranty PDF Galvanized 15" 113-7/8" 2 120
Rigid Posts
YGR-TP18 Warranty PDF Yellow 18" Rigid Post 36
YGR-TP42 Warranty PDF Yellow 42" Rigid Post 65
GGR-TP18 Warranty PDF Galvanized 18" Rigid Post 35
GGR-TP42 Warranty PDF Galvanized 42" Rigid Post 59
GGR-TP60 Warranty PDF Yellow 60" Rigid Post 83
GGR-TP72 Warranty PDF Yellow 72" Rigid Post 95
AS-344 Anchor Bolts for concrete, (1) 3/4"x4-1/4" 1
AS-344-4PK Anchor Bolts for concrete, (4) 3/4"x4-1/4" 4
