model MEZZ-200

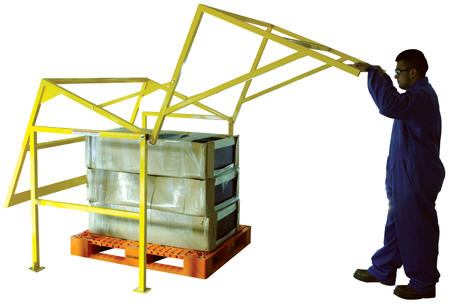

The Mezzanine Safety Gate provides an OSHA required 42" high handrail, 21" high mid-rail, and 4" high toe board for mezzanines without sacrificing load accessibility. To accommodate the maximum load height of 68", when utilizing a standard 48"W x 48"D pallet (two standard, side by side pallets for models MEZZ-200-DW & MEZZ-200-DW-SS) load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Baked-in powder-coated toughness. Welded steel construction.

OPERATION:





Mezzanine Safety Gate

Model PDF's Overall
Height
Overall
Width
Overall Depth Usable Width Wt. (lbs)
MEZZ-200* Warranty PDF 80-1/16" 68-1/2" 79-5/16" 56" 215
MEZZ-200-SS Warranty PDF 80-1/16" 68-1/2" 79-5/16" 56" 215
MEZZ-200-DW* Warranty PDF 80-1/16" 108-1/2" 79-5/16" 96" 284
MEZZ-200-DW-SS Warranty PDF 80-1/16" 108-1/2" 79-5/16" 96" 284
 * Baked-In Powder Coated Toughness / SS= Stainless Steel Construction
