S-STAND

S-STAND-W


Display your signs anywhere. Surface mounted with a weighted base. Includes (3) holes, 9/16" diameter with 1-3/8" diameter counter-bore for permanent mounting of sign. Removable post will accept virtually any sign (sign & mounting hardware not included). Steel construction with painted bright zinc finish.

Sign Stands

Model PDF Description Height Base
Dia.
Wt. (lbs)
S-STAND Warranty PDF No Wheels 48" 18" 42
S-STAND-W Warranty PDF Wheels Included 48" 18" 43

PYSB-W-Y

OSB-B

PYSB-W-R

PYSB-R

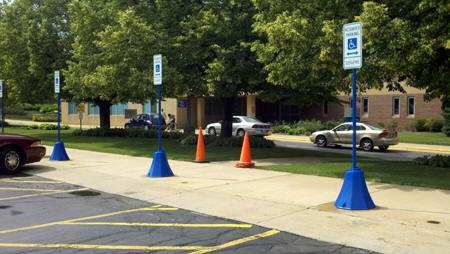

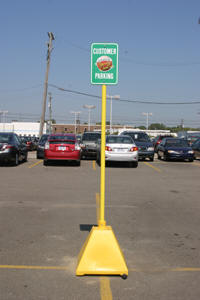

Give your property that brand new look for years to come!  Save time on installation and no core drilling or anchor assembly required.  Pyramid Base can be conveniently rolled out of the way for parking lot maintenance and snow removal.  Made with ¼” low density polyethylene, which has ultra-violet and anti-static additives for long lasting, maintenance free use.  Bases can be filled with concrete, sand or up to 22 gallons of water (11-1/2 gallons with the OSB models).  Steel pipe sleeved with high-density thermoplastic included with bases (No holes to attach signs, these must be drilled by customer). Supports various signs (not included) from “No Parking”, to “Stop Sign”, and post is removable from base for easy storage.

Sign Base Systems
Model PDF Base Dimensions
(W x D X H)
Wheels Overall
Height
Post
Diameter
Color Wt.
(lbs)
PYSB-Y Warranty PDF 22" x 22" x 22" No 98" 1.6" Yellow 46
PYSB-R Warranty PDF 22" x 22" x 22" No 98" 1.6" Red 46
PYSB-B Warranty PDF 22" x 22" x 22" No 98" 1.6" Blue 46
PYSB-BK Warranty PDF 22" x 22" x 22" No 98" 1.6" Black 46
PYSB-W-Y Warranty PDF 22" x 22" x 22" Yes 98" 1.6" Yellow 46
PYSB-W-R Warranty PDF 22" x22" x 22" Yes 98" 1.6" Red 46
PYSB-W-B Warranty PDF 22" x 22" x 22" Yes 98" 1.6" Blue 46
PYSB-W-BK Warranty PDF 22" x 22" x 22" Yes 98" 1.6" Black 46
OSB-R Warranty PDF Sides 8”W
Base 20”H
No 98" 1.6" Red 46
OSB-B Warranty PDF Sides 8”W
Base 20”H
No 98" 1.6" Blue 46
OSB-GN Warranty PDF Sides 8”W
Base 20”H
No 98" 1.6" Green 46
