WB01372_.gif (406 bytes) Crowd Control Interlocking Barriers - PRAIL series

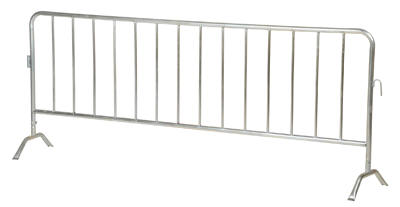

GALVANIZED FINISH


model PRAIL-102-G


model PRAIL-102-G-FF


model PRAIL-102-G-W


model PRAIL-102-G-WF


model PRAIL-102-G-WW


model PRAIL-102-HD-G

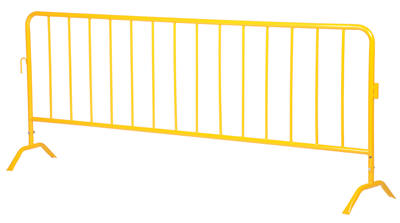

POWDER COAT SAFETY YELLOW FINISH


model PRAIL-102-Y



model PRAIL-102-Y-FF


model PRAIL-102-Y-W


model PRAIL-102-Y-WF


model PRAIL-102-Y-WW


model PRAIL-102-HD-Y

STAINLESS STEEL TYPE 304 FINISH


model PRAIL-102-SS

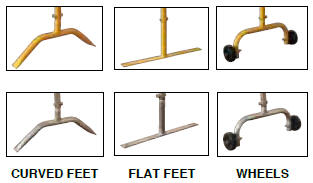

Attractive and functional design ideal for directing personnel. Interlocking portable railing has many commercial and industrial applications. Easy to move to meet changing needs. Upright bars are vertically spaced at 5-5/8" intervals. Each railing includes connectors to attach multiple units together to form long runs. Overall size is 102"L x 40"H. Feet are removable so railing will lay flat for shipping and storage. Variety of foot styles available. Rugged welded steel construction.



Check Out Our Crowd Control Barriers Cart



Crowd Control Interlocking Barricades

Model PDF Style Foot
Style
Rail
Diameter
Wt.
(lbs)
 Galvanized Finish
PRAIL-102-G Light Weight Both Curved 1-1/4" 85
PRAIL-102-G-WW Light Weight Both Wheels 1-1/4" 85
PRAIL-102-G-FF Light Weight Both Flat 1-1/4" 85
PRAIL-102-G-WF Light Weight (1) Wheel, (1) Flat 1-1/4" 85
PRAIL-102-G-W Light Weight (1) Wheel, (1) Curved 1-1/4" 85
PRAIL-102-HD-G Heavy Duty Both Curved 1-5/8" 105
PRAIL-102-HD-G-WW Heavy Duty Both Wheels 1-5/8" 105
PRAIL-102-HD-G-FF Heavy Duty Both Flat 1-5/8" 105
PRAIL-102-HD-G-WF Heavy Duty (1) Wheel, (1) Flat 1-5/8" 105
PRAIL-102-HD-G-W Heavy Duty (1) Wheel, (1) Curved 1-5/8" 105
 Powder Coat Safety Yellow Finish
PRAIL-102-Y Light Weight Both Curved 1-1/4" 85
PRAIL-102-Y-WW Light Weight Both Wheels 1-1/4" 85
PRAIL-102-Y-FF Light Weight Both Flat 1-1/4" 85
PRAIL-102-Y-WF Light Weight (1) Wheel, (1) Flat 1-1/4" 85
PRAIL-102-Y-W Light Weight (1) Wheel, (1) Curved 1-1/4" 85
PRAIL-102-HD-Y Heavy Duty Both Curved 1-5/8" 105
PRAIL-102-HD-Y-WW Heavy Duty Both Wheels 1-5/8" 105
PRAIL-102-HD-Y-FF Heavy Duty Both Flat 1-5/8" 105
PRAIL-102-HD-Y-WF Heavy Duty (1) Wheel, (1) Flat 1-5/8" 105
PRAIL-102-HD-Y-W Heavy Duty (1) Wheel, (1) Curved 1-5/8" 105
 Stainless Steel Type 304 Finish
PRAIL-102-SS Light Weight Both Curved 1-1/4" 85
PRAIL-102-HD-SS Heavy Duty Both Curved 1-5/8" 105
