model PLB-5


model PLB-6

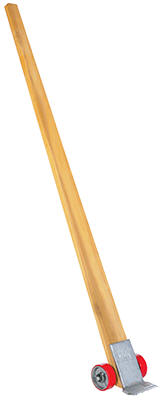

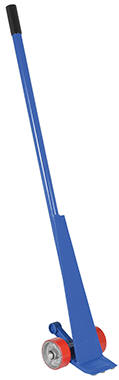

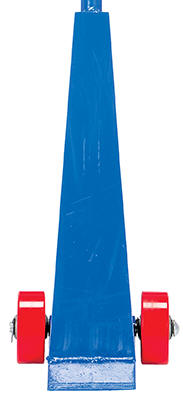

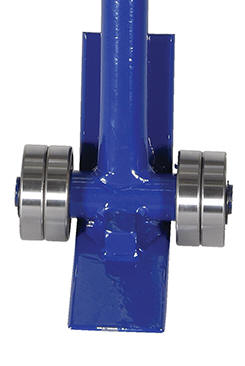

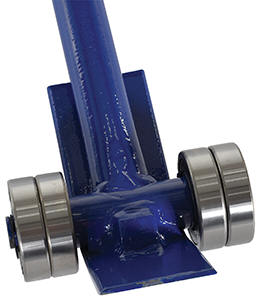

Provide dock workers, riggers, and freight handlers with the leverage needed to get underneath heavy objects for transporting with fork truck, hand truck, pallet truck, or machinery movers.  Two (2) 5" x 2" poly-on-steel wheels (models with suffix SBW have steel bearing wheels).  ⅝" thick steel nose plate with beveled edge is bolted on the wood handle units and welded on the steel units.  Steel units feature baked-in powder-coated toughness.



model PLB-7


model PLB/S-5


model PLB/S-6


model PLB/S-7

Pry Lever Bars
Model PDF's Handle
Type
Bar
Length
Usable Nose
Plate (WxD)
Capacity
(lbs)
Weight
(lbs)
PLB-5 Warranty PDFPhoto GalleryCompliance Certificate Wood 5' 7-1/8"x3-1/8" 4,250 31
PLB-6 Warranty PDFPhoto GalleryCompliance Certificate Wood 6' 7-1/8"x3-1/8" 4,250 32
PLB-7 Warranty PDFPhoto GalleryCompliance Certificate Wood 7' 7-1/8"x3-1/8" 4,250 35
PLB/S-5 Warranty PDFPhoto GalleryCompliance Certificate Steel 5' 6"x3-1/2" 5,000 37
PLB/S-6 Warranty PDFPhoto GalleryCompliance Certificate Steel 6' 6"x3-1/2" 5,000 42
PLB/S-7 Warranty PDFPhoto GalleryCompliance Certificate Steel 7' 6"x3-1/2" 5,000 47
  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
