(Enter a Model Number or Keyword)







model EPT-2748-45-SCL

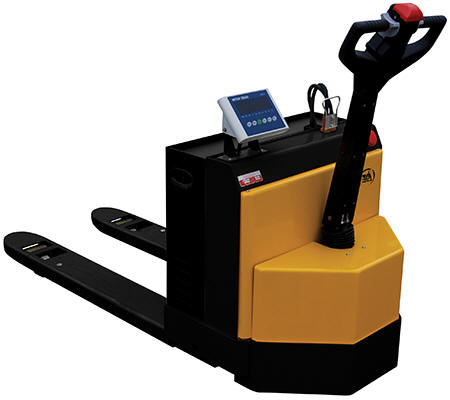

Verify inbound and outbound freight right on your pallet truck and then move your loads with ease.  LCD Scale, with 1/2" high characters and 5 function keys (ZERO, TARE, NET/GROSS, PRINT, LB./KG.), displays weight in 1 lb. increments within trucks rated capacity. Scale display operates on (6) six AA batteries. Scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. Raise and lower loads with a push of a button. Maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. WORKS ONLY WITH OPEN BOTTOM SKIDS.





Electric Pallet Trucks with Scale
Model PDF's Overall Size
(WxLxH)
Uniform
Capacity (lbs)
Fork Size
(WxL)
Service
Range
Wt.
(lbs)
EPT-2547-30-SCL Warranty PDFCompliance Certificate 28-1/2"x 66 "x 49" 3,000 25"x47" 3.1"to 7.8" 862
EPT-2748-45-SCL Warranty PDFCompliance Certificate 31-1/2"x76-1/2"x 51-3/8" 4,500 27"x48" 3-3/4"to 8" 1338
EPT-45-RP-KIT Optional Rider Platform, Fields Installed 20
EPT-SCL-PT Optional Printer 3
Includes Stand-On Platform which flips up when not in use (18"Wx12"Lx4-3/4"H)
EPT-2748-45-SCL-RP Warranty PDF 30.25"x76.5"x49" 4,500 27"x48" 3-3/4"to8" 1376
Optional Batteries (Must be ordered with new units)
AGM-UPG-2-12V AGM Battery Upgrade 2x12V purchase with new unit 120
AGM-UPG-4-6V AGM Battery Upgrade 4x6V purchase with new unit 80
  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote


Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



Download EPT Owners Manual (Large!)


Optional Rider Platform, Field Installed.  Model: EPT-45-RP-KIT
