model EPT-2748-45



model EPT-2547-30

24V DC Standard

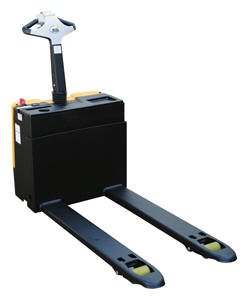

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels.  Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed.  The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a level of operator protection which is unmatched by any unit on the market today.



model EPT-2796-45



model EPT-2748-45-RP



model EPT-2547-30-E







Fully Powered Electric Pallet Trucks with Lead Acid Batteries
Model PDF's Overall Size
(WxLxH)
Uniform
Capacity (lbs)
Fork Size
(WxL)
Service
Range
Wt. (lbs)
EPT-2047-30 Warranty PDFCompliance Certificate 28-1/4"x64"x48" 3,300 20"x47" 3.2"to7.8" 742
EPT-2547-30 Warranty PDFCompliance Certificate 28-1/4"x 64"x 48" 3,300 25"x48" 3.1"to7.8" 742
EPT-2547-30-E Warranty PDFCompliance Certificate 25"x 65"x 49" 3,000 25"x47" 3.1"to7.8" 642
EPT-2048-45 Warranty PDFCompliance Certificate 30-1/4"x76"x52" 4,500 20"x48" 3.4"to7.8" 1101
EPT-2748-45 Warranty PDFCompliance Certificate 30-1/4"x 76" x52" 4,500 27"x48" 3.2"to8.2" 1116
EPT-2796-45* Warranty PDFCompliance Certificate 30"x125"x51" 4,500 27"x96" 3.2"to8.2" 1582

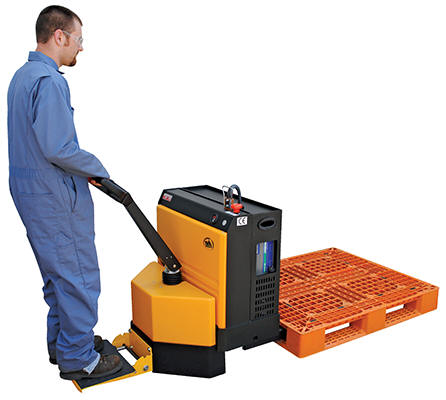

EPT-45-RP-KIT Optional Rider Platform, Field Installed  - Available for 4,500 lbs. capacity Electric Pallet Trucks 20
Includes Stand-On Platform which flips up when not in use (18"Wx12"Lx4-3/4"H)
EPT-2048-45-RP Warranty PDFCompliance Certificate 30"x80-3/4"x51" 4,500 20"x48" 3.4"to7.8" 1136
EPT-2748-45-RP Warranty PDFCompliance Certificate 30"x80-3/4"x51" 4,500 27"x48" 3.4"to7.8" 1356
Optional Batteries (Must be ordered with new units)
AGM-UPG-2-12V AGM Battery For 3,300 lb. units ---
AGM-UPG-4-6V AGM Battery For 4,500 lb. units ---

* Stand-On Platform comes standard

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



EPT-30  Owners Manual

EPT Master Service Manual

EPT-45 Owners Manual


Optional Rider Platform, Field Installed.  Model: EPT-45-RP-KIT
