model ALL-T-2

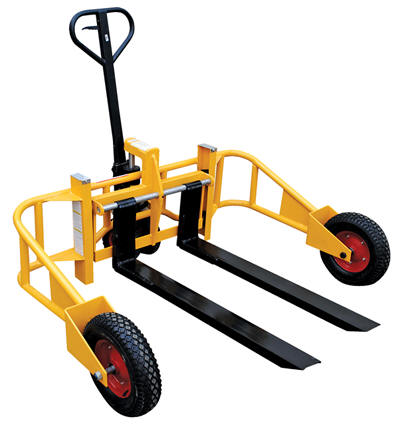

This lightweight, yet strong tubular frame design handles evenly distributed loads.  Large wheels allow for movement over most surfaces.  Use at construction sites, gravel pits, and nurseries.  Features large 15" front pneumatic tires (22" on ALL-T-HD) and 10" pneumatic steering wheels. Individual forks are 4"W x 2"H (4"W on ALL-T-HD).  Easy to operate with three position handle (UP, DOWN, and NEUTRAL).

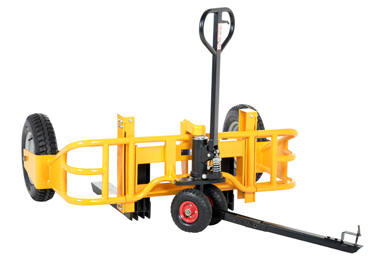

Optional Tow Bar package allows unit to be towed by an ATV or small utility tractor.  Designed for pulling in either loaded or unloaded position.



model ALL-T-HD




ALL-TTB
Optional Tow Bar Package



All Terrain Pallet Truck
Model PDF's Overall Size
(WxLxH)
Capacity
(lbs)
Adjustable
Fork Width
Fork
Length
Service
Range
Wt.
(lbs)
 Manual
ALL-T-2 Warranty PDFCompliance Certificate 63-3/4"x49"x51" 2,000* 9" to 26" 32" 3" to 9" 328
ALL-T-2-48 Warranty PDFCompliance Certificate 65"x63"x51" 2,000** 9" to 26" 48" 3" to 9" 368
ALL-T-HD Warranty PDFCompliance Certificate 64"x50"x51" 2,500*** 12" to 26-3/4" 32" 3" to 9" 546

 Options

ALL-TTB Compliance Certificate Optional Tow Bar Package 23

* 2,000 lbs. at 12" horizontal load center, 1,500 lbs. at 15" and 750 lbs at 24".
** 2,000 lbs. at 24" horizontal load center, 1,500 lbs. at27" and 1,000 lbs at 30".
*** 2,500 lbs. at 12" horizontal load center, 2,000 lbs. at 15" and 1,500 lbs at 24".

    = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
