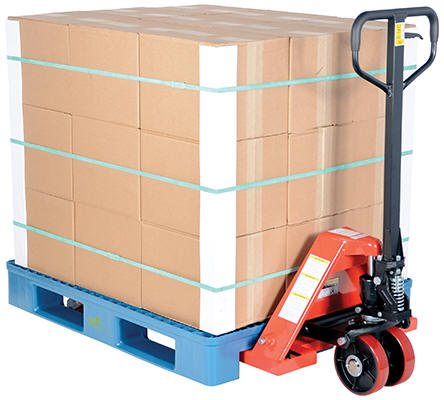

model PM5-2748

Ships with the Handle Detached Standard

An economical way for one person to move heavy pallet loads without the use of a fork truck!   Includes two articulating steering wheels and two front load rollers.  Ergonomic design requires only 75 pounds of pulling force when fully loaded.  Steering wheels include bearing dust covers for added life.  Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit.  Wheels are constructed of Poly-on-Steel unless otherwise noted.  Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks.  7" wide forks are standard, except for model PM10-2245 which includes 8-1/4" wide forks.  Equipped with internally mounted solid steel adjustable push rods.  Spring loaded handle automatically returns to vertical position when not in use.  Hydraulic pump design facilitates easy-access seal replacement.  Chrome-plated hydraulic pump piston for long seal life.

Model PM5-2748-FP raises and lowers with a foot pump mechanism.


PM6-2748


PM5-2748-FP


PM5-2748-PINK


PM10-2245



PM4-2772


PM5-2036

PM5-2748-N


PM5-2748-S

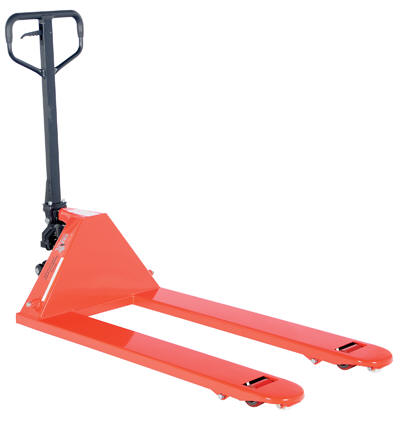

Full Featured Deluxe Pallet Truck
Model Number PDF's Capacity
(lbs)
Overall
Fork Dim.
Service
Range
Wt.
(lbs)
PM5-2036 Warranty PDFCompliance Certificate 5,500 20"Wx36"L 2-7/8"-7-3/4" 210
PM5-2736 Warranty PDFCompliance Certificate 5,500 27"Wx36"L 2-7/8"-7-3/4" 210
PM5-2048 Warranty PDFCompliance Certificate 5,500 20-5/8"Wx48"L 2-7/8"-7-3/4" 210
PM5-2748 Warranty PDFCompliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 210
PM5-2748-PINK  Warranty PDFCompliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 216
PM5-2748-N* Warranty PDFCompliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 227
PM5-2748-S** Warranty PDFCompliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 222
PM5-2748-FP Warranty PDFCompliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 220
PM4-2072 Warranty PDFCompliance Certificate 4,400 20-5/8"Wx72"L 2-7/8"-7-3/4" 284
PM4-2772 Warranty PDFCompliance Certificate 4,400 27"Wx72"L 2-7/8"-7-3/4" 301
PM4-2096 Warranty PDFCompliance Certificate 4,000 20-5/8"Wx96"L 2-7/8"-7-3/4" 402
PM4-2796 Warranty PDFCompliance Certificate 4,000 27"Wx96"L 2-7/8"-7-3/4" 382
PM6-2748 Warranty PDFCompliance Certificate 6,000 27"Wx48"L 2-7/8"-7-3/4" 212
PM10-2245** Warranty PDFCompliance Certificate 10,000 22-3/4"Wx45-1/4"L 3-1/2"to7-7/8" 423
 (6) SIX PACKS - CRATED
PM5-2048-6PKG Warranty PDFCompliance Certificate 5,500 20-5/8"Wx48"L 2-7/8"-7-3/4" 1130
PM5-2748-6PKG Warranty PDFCompliance Certificate 5,500 27"Wx48"L 2-7/8"-7-3/4" 1372
PM6-2748-6PKG Warranty PDFCompliance Certificate 6,000 27"Wx48"L 2-7/8"-7-3/4" 1444
* Nylon Wheels / **Steel Wheels (ALL OTHERS ARE POLY-ON-STEEL)
 Foot Brake Kit Option, model PM5-FB
 Low Temp Oil For Freezer Applications, model CWHF-SM

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
