PM4-2748-LP

Ships with the Handle Detached Standard

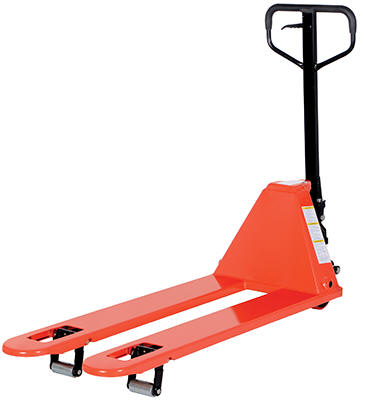

The Low Profile Pallet Truck enters pallets from all four sides.  All steel frame is reinforced to handle 4,000 lb. capacity loads.  Individual fork width is 7" wide.  Wide loop control handle with lift, neutral, and lower functions provides fingertip control.  Lifetime lubricated bearings.  Hydraulic system has hard chrome plated pump piston with polyurethane seals.  Suspension system has a heavy-duty thrust bearing.  Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.



PM4-2048-LP



PM4-3348-LP



model PM2-2744-SLP

Ships with the Handle Detached Standard

These pallet trucks are ideal for skids and low profile pallets. Features 1 1⁄2 lowered fork height for extra low profile skids, pallets or machinery. Fingertip lever switch for raise, lower and neutral operation. Rubber cushioned handle grip. Powder coat finish.

Low Profile Pallet Truck
Model Number PDF's Description Capacity
(lbs)
Overall Fork
Dimensions
Service
Range
Wt.
(lbs)
PM4-2048-LP* Warranty PDFCompliance Certificate Low Profile 4,000 20-5/8"Wx48"L 1-7/8"-6" 229
PM4-2748-LP Warranty PDFCompliance Certificate Low Profile 4,000 27"Wx48"L 1-7/8"-6" 253
PM4-3348-LP Warranty PDFCompliance Certificate Low Profile 4,000 33"Wx48"L 1-7/8"-6" 271
 (6) SIX PACKS - CRATED
PM4-2048-LP-6PKG* Warranty PDFCompliance Certificate Low Profile 4,000 20-5/8"Wx48"L 1-7/8"-6"
PM4-2748-LP-6PKG Warranty PDFCompliance Certificate Low Profile 4,000 27"Wx48"L 1-7/8"-6"
PM4-3348-LP-6PKG Warranty PDFCompliance Certificate Low Profile 4,000 33"Wx48"L 1-7/8"-6"
* MODEL PM4-2048-LP HAS A TRIANGULAR APRON
 Super Low Profile Pallet Trucks
Model PDF's Description Capacity
(lbs)
Overall Fork
Dimensions
Service
Range
Wt.
(lbs)
PM2-2044-SLP Warranty PDFCompliance Certificate Low Profile 2,200 21"Wx44"L 1-1/2"-3-3/8" 290
PM2-2744-SLP Warranty PDFCompliance Certificate Low Profile 2,200 27"Wx44"L 1-1/2"-3-3/8" 310
PM2-3344-SLP Warranty PDFCompliance Certificate Low Profile 2,200 33"Wx44"L 1-1/2"-3-3/8" 328
  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2017
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



PM2-2044 Owners Manual

PM2-SLP series Owners Manual
