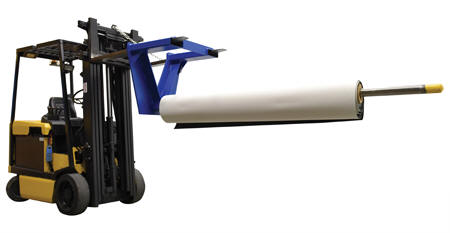

model CRP-108 shown

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3⁄4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

Fork Mounted Rug Rams feature 7-1⁄2"W x 2-1⁄2"H fork pockets on models CRP, 7-5/8W x 2-5/8H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.




Fork Mounted - Inverted
series CRP

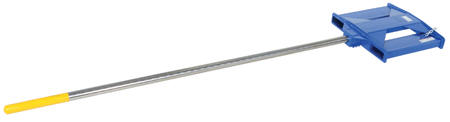

Fork Mounted
series CRF



Carriage Mounted
series CR

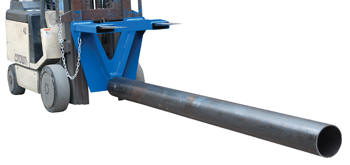

Rug Rams can also be used to move materials such as steel pipe.

Rug Rams/Carpet Poles
Model PDF's Description Pole
Length
Pole
Dia.
Carriage
Class
Capacity
(lbs)
Wt.
(lbs)
CRP-108 Warranty PDFCompliance Certificate Fork Mount - Inverted 108-1/2" 2-3/4" - 2,500 466
CRP-120 Warranty PDFCompliance Certificate Fork Mount - Inverted 120-1/2" 2-3/4" - 2,200 488
CRP-144 Warranty PDFCompliance Certificate Fork Mount - Inverted 144-1/2" 2-3/4" - 1,800 528
CRF-108 Warranty PDFCompliance Certificate Fork Mounted 108-1/2" 2-3/4" - 2,500 389
CRF-120 Warranty PDFCompliance Certificate Fork Mounted 120-1/2" 2-3/4" - 2,200 424
CRF-144 Warranty PDFCompliance Certificate Fork Mounted 144-1/2" 2-3/4" - 1,800 450
CR-108-2 Warranty PDFCompliance Certificate Carriage Mount - Class II 108-1/2" 2-3/4" 2 2,500 287
CR-120-2 Warranty PDFCompliance Certificate Carriage Mount - Class II 120-1/2" 2-3/4" 2 2,200 310
CR-144-2 Warranty PDFCompliance Certificate Carriage Mount - Class II 144-1/2" 2-3/4" 2 1,800 342
CR-108-3 Warranty PDFCompliance Certificate Carriage Mount - Class III 108-1/2" 2-3/4" 3 2,500 296
CR-120-3 Warranty PDFCompliance Certificate Carriage Mount - Class III 120-1/2" 2-3/4" 3 2,200 316
CR-144-3 Warranty PDFCompliance Certificate Carriage Mount - Class III 144-1/2" 2-3/4" 3 1,800 478

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
