model SPB-N-72

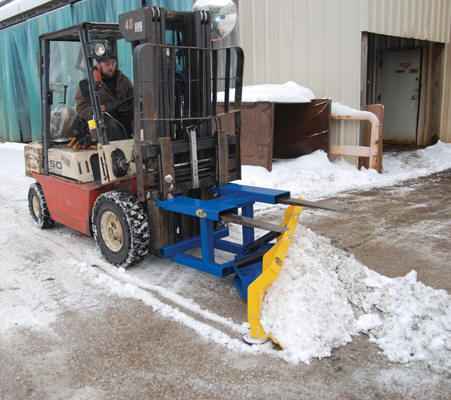

Unique design attaches to fork truck forks.  Pass through fork tubes keep weight back towards fork truck mast.  Locking pins secure snow plow for forks for safety.  Manual pivot mechanism for angled plowing on both sides.  Floating pads allow for adjustment of plowing height.  Adjustable springs allow blade to pivot back for safety.  Steel construction with baked in powder coat finish for added toughness.


Optional Additional Weight Area
model SPB-N-WT


Fork Mounted Snow Plow
Model PDF Description Wt.
(lbs)
SPB-N-72 Warranty PDFCompliance Certificate Fork Truck Snow Plow with 72" Wide Blade 588
SPB-N-WT Warranty PDFCompliance Certificate Optional Additional Weight Area (for better plowing  performance) Capacity of up to450 lbs. may be added 44

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

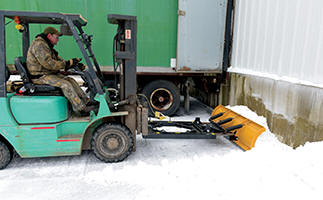

Designed for use with your fork truck, these Snow Plow Blades are multifunctional to work with your existing equipment. No more waiting for daytime snow removal. Simply place the snow blade onto your fork truck and away you go! Installation is as easy as sliding the forks into the fork pockets and securing them to the fork carriage. Prevent damage from obstacles and rough or uneven surfaces with trip springs. Easy angling and backgrade capabilities for optimal performance. Constructed of rollplate with steel rigs. The blade edge is 5/8" x 6" hardened steel. Counterbalance shipped empty.

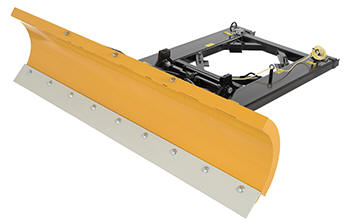

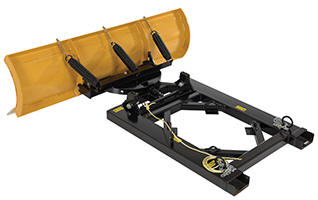

Fork Mounted Snow Plow Blades
Model PDF's Overall
Plow Width
Plow width
at 24
angle
Plow width
at 47
angle
Maximum
Fork (WxL)
Wt.
(lbs)
SPB-548 Warranty PDFCompliance Certificate 6 Feet 66" 48" 5-1/2"x48" 510
SPB-748 Warranty PDFCompliance Certificate 6 Feet 66" 48" 7-1/2"x48" 520
SPB-556 Warranty PDFCompliance Certificate 7 Feet 76" 56" 5-1/2"x48" 585
SPB-756 Warranty PDFCompliance Certificate 7 Feet 76" 56" 7-1/2"x48" 594
SPB-CB Warranty PDF  Counterbalance (estimated weight filled 500 lbs.) 40
  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
