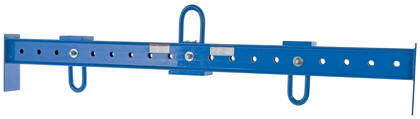

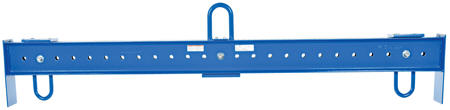

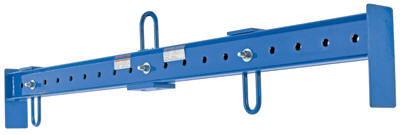

model SBM-25

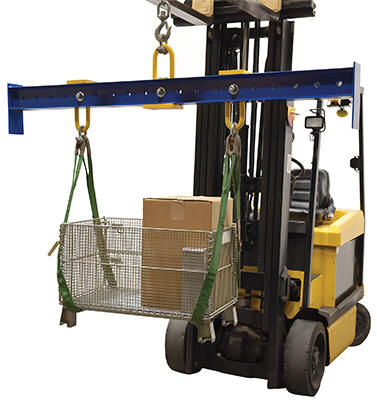

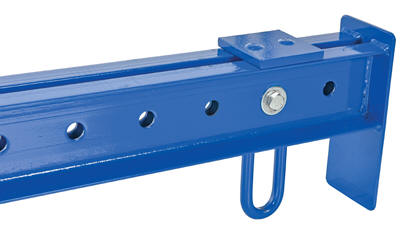

Lift uneven loads and keep them level with increased safety.  Includes two lower bails and one upper bail.  Adjust bails in 4 increments. The bails slide between two 5 high C-Channels (8 high model SBM-80).  Meets ASME B30.20-1993 standard.  Baked-in powder-coated finish for added toughness.



model SBM-40


model SBM-80model SBM-80
Adjustable Spreader Beam
Model PDF's Spread Min. Spread Max. Upper Bail
(W x H)
Lower Bail
(W x H)
Head
Room
Capacity (lbs) Wt. (lbs)
SBM-25 Warranty PDFCompliance Certificate 8" 6' 2-1/2"x5" 1-1/2"x4-1/2" 14-3/4" 2,500 146
SBM-40 Warranty PDFCompliance Certificate 8" 6' 3"x5-1/2" 2"x4" 14-3/4" 4,000 170
SBM-80 Warranty PDFCompliance Certificate 8" 8' 4"x7-1/4" 3"x5-1/4" 20-3/4" 8,000 350
SM-UB-25 Additional Upper Bail for SBM-25 10
SM-LB-25 Additional Lower Bail for SBM-25 11
SM-UB-40 Additional Upper Bail for SBM-40 16
SM-LB-40 Additional Lower Bail for SBM-40 17
SM-UB-80 Additional Upper Bail for SBM-80 24
SM-LB-80 Additional Lower Bail for SBM-80 33

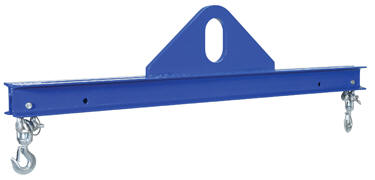

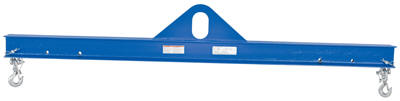

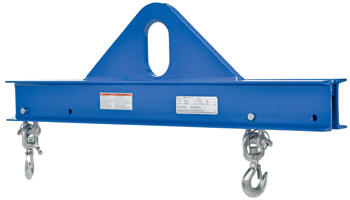

model SBM-10-4

These versatile lifters are ideal for lifting a variety of loads where headroom is limited.  Complies with OSHA and ANSI B30.20 standards.  Usable bail is 3 wide, 5 high.  Two safety swivel hooks and durable baked-in powder-coat finish for toughness.  Heavy-duty welded steel construction.



model SBM-10-6



model SBM-10-8



model SBM-10-10



model SBM-10-12



model SBM-20-3



model SBM-20-4



model SBM-20-8



model SBM-40-3



model SBM-40-6



model SBM-40-10



model SBM-60-3



model SBM-60-4



model SBM-60-8



model SBM-60-10



model SBM-60-12





Economy Spreader Beams
Model PDF's Min./Max.
Spread
Headroom Capacity
(lbs)
Wt.
(lbs)
SBM-10-3 Warranty PDFCompliance Certificate 21"/33" 14" 1,000 67
SBM-10-4 Warranty PDFCompliance Certificate 33"/45" 14" 1,000 75
SBM-10-6 Warranty PDFCompliance Certificate 45/69" 14" 1,000 93
SBM-10-8 Warranty PDFCompliance Certificate 69"/93" 14" 1,000 105
SBM-10-10 Warranty PDFCompliance Certificate 93"/117" 14" 1,000 141
SBM-10-12 Warranty PDFCompliance Certificate 117"/141" 14" 1,000 212
SBM-20-3 Warranty PDFCompliance Certificate 21"/33" 14" 2,000 54
SBM-20-4 Warranty PDFCompliance Certificate 33"/45" 14" 2,000 61
SBM-20-6 Warranty PDFCompliance Certificate 45"/69"" 14" 2,000 103
SBM-20-8 Warranty PDFCompliance Certificate 69"/93" 14" 2,000 159
SBM-20-10 Warranty PDFCompliance Certificate 93"/117" 15" 2,000 188
SBM-20-12 Warranty PDFCompliance Certificate 117"/141" 15" 2,000 232
SBM-40-3 Warranty PDFCompliance Certificate 21"/33" 14-3/8" 4,000 79
SBM-40-4 Warranty PDFCompliance Certificate 33"/45" 14-3/8" 4,000 112
SBM-40-6 Warranty PDFCompliance Certificate 45"/69" 15-3/8" 4,000 147
SBM-40-8 Warranty PDFCompliance Certificate 69"/93" 18-3/8" 4,000 222
SBM-40-10 Warranty PDFCompliance Certificate 93"/117" 18-3/8" 4,000 275
SBM-40-12 Warranty PDFCompliance Certificate 117"/141" 18-3/8" 4,000 295
SBM-60-3 Warranty PDFCompliance Certificate 21"/33" 15-11/16" 6,000 78
SBM-60-4 Warranty PDFCompliance Certificate 33"/45" 15-11/16" 6,000 146
SBM-60-6 Warranty PDFCompliance Certificate 45"/69" 18-11/16" 6,000 187
SBM-60-8 Warranty PDFCompliance Certificate 69"/93" 18-11/16" 6,000 247
SBM-60-10 Warranty PDFCompliance Certificate 93"/117" 18-11/16" 6,000 305
SBM-60-12 Warranty PDFCompliance Certificate 117"/141" 18-11/16" 6,000 393

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



SBM Series Owners Manual


Additional Lower Bails model SM-LB


model SM-UB
